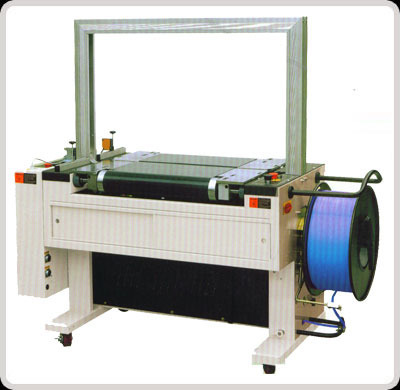

Our expertise lies in offering an optimum range of Fully Automatic Strapping Machine, which works with high efficiency and low energy consumption. This machine is strong in construction and has corrosion resistant body, which makes it highly durable. Moreover, this machine is highly in demand in various industries due to its low maintenance cost and easy operations.
Model – IPS-03F
•Standardized power belt table model with 2 sets of photocell.
•Optional straps No. Is available for 1, 2 or no strapping on the packages. More
straps application is also available as an option before order is fixed.
•This model can incorporate with input and output conveyors as a strapping
system. The control system of conveyors can be connected with this model.
•An optional photocell to control the table transmitting is available, which can
auto-stop the table when no package is input.
Technical Specifications:
Arch Size
850W x 600H mm (Standard)
Strap Cycle Speed
2.5 Sec. cycle
Tension Strength
Max. 70kgs
Table Height
820mm
Strap Width
9~15.5mm
Sealing Method
Heat Sealing.
Power Roller Speed
18M60Hz, 15M50Hz Per Min.
Packing Size
200-520W, 30-560Hmm
Power Supply
110220V 5060Hz 1 Ph; 220380V 5060Hz 3Ph
Dimensions
1550Wx640Dx1550Hmm
Machine Weight
307kgs
Gross Weight
402kgs
