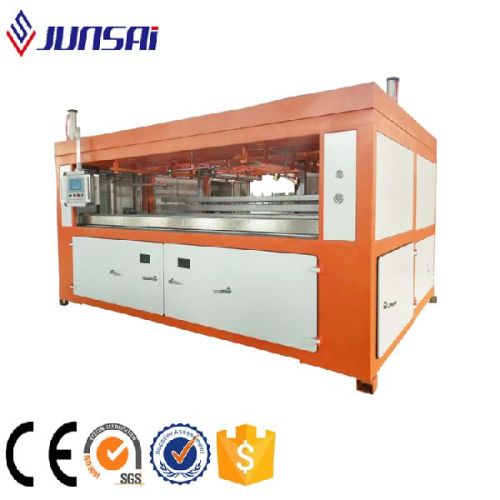

Fully Automatic Thick Sheet Plastic Vacuum Forming Machine

₹ 22.25 Lakh / Set

MOQ1 Set(s)
Brand NameJunsai
ConditionAll
Number Of Flowercar bumper, luggage, roof box, bathtub, tray, fridge liner
Country of Origin380V 50HZ
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Product Details

Brand NameJunsai
Number Of Flowercar bumper, luggage, roof box, bathtub, tray, fridge liner
Country of Origin380V 50HZ
ConditionAll
After-Sales Service ProvidedYES
ControllerPLC + Touch screen
Forming typeVacuum forming
Working speed3-5 min/ mould
Air Pressure0.6-0.8Mpa
Product nameFully automatic thick sheet plastic vacuum forming machine for car bumper
Max forming height750mm
Sheet thickness1-10mm
Max forming area2500*1000mm
Plastic TypeABS, PS, PE, PET, PP, PC, PVC, Acrylic

automatic thick sheet plastic vacuum forming machine adopt the latest international panel processing technology, which are machine, electric, air integrated design with PLC control system and human-machine interface operation, quick infrared heating. The temperature can be adjustable according to the size and shape of the molding, which can save 30% energy compared with traditional machines. Both concave-convex mold can be formed, and automatic loading and unloading can be customized according to clientsâ�� demands. The machine is especially applied in large plastic products.
