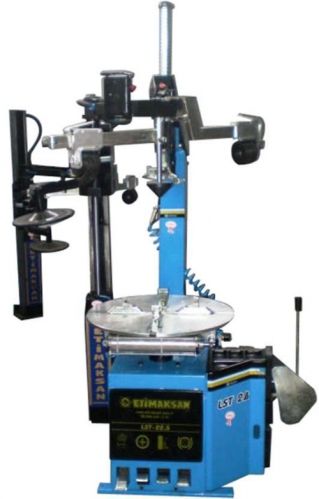

Fully Automatic Tyre Changer

We offer etimaksan lst24 fully automatic tyre changer.
technical data
automatic tyre changer for 10” – 24” (inside locking 12” -26”, outside locking 10” – 24”) wheels
complete with automatic lubricator, tyre lever, plastic protection for bead breaker blade 230400v.
50hz three-phase motor, with pneumatic tilting back vertical positions, with pneumaticly operated
system which locks the mountingdemounting tool 3mm. Away from the rim edge, with inflating gun.
optional : tubeless tyres inflating device from slides with pedal control and air tank.
working pressure 8 – 12 bar
bead breaker force 2500 kg
working voltage 380v 3phase 50hz
working voltage 220v single-phase
motor power 1,1 kw- 1,5 hp 1500 rpm
weight (net gross) 255 280kg - without arms
width 845mm
dept 1030mm
height 1850mm
plate height 780mm
max.wheel diameter 1000mm
wheel width 3” – 12”
case size 1000 x 1100 x 1800mm
