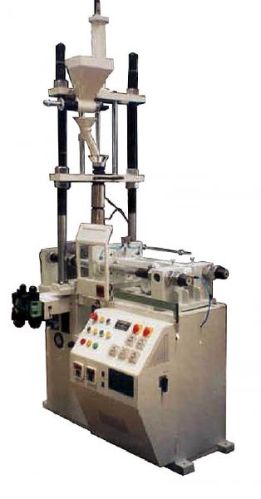

Fully Automatic Vertical Plunger Machine

Model Number60-VH/S
Max. moulding capacity* 70 gms
Clamping force (adjustable) 25 tons hydraulic toggle
Approx. machine size LxBxH 1520 x 700 x 2400 mm
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Product Details

Model Number60-VH/S
Clamping force (adjustable) 25 tons hydraulic toggle
Injection nozzle centre (mould back centre) 50-125 mm adjustable
Max. injection pressure* 900 Kg/cm
Approx. machine size LxBxH 1520 x 700 x 2400 mm
Number of tie bars 2
Max. Plasticising capacity* Full Auto 12.0 Kg/hr
Clear gap between tie bars 230 mm
Total heating load 1.5 Kw
Electric motor 3 HP 440/3/50 AC or 2 HP 220/1/50 AC
Max. shots per hour* Semi Auto 180 nos./hr
Max. shots per hour* Full Auto 200 nos./hr
Max. moulding capacity* 70 gms
Max. dimensions of the mould 200 x 200 x 200 mm
Approx. machine packing size LxBxH with oil cooler 1725 x 1270 x 2400 mm
Max. Plasticising capacity* Semi Auto 10.8 Kg/hr
Oil tank capacity 75 litre
Max. mould opening 200 mm
Max. pump pressure (adjustable) 140 kg/sq.cm

Plunger type injection unit.Toggle type horizontal mould clamping unit.Injection unit can be raised and lowered as per requirements of moulds.Mould runner centre can be aligned horizontally by shifting the fixed platen.Proven design with reliable and user friendly features components.Can be upgraded to 60-VHS model, by modifications.
