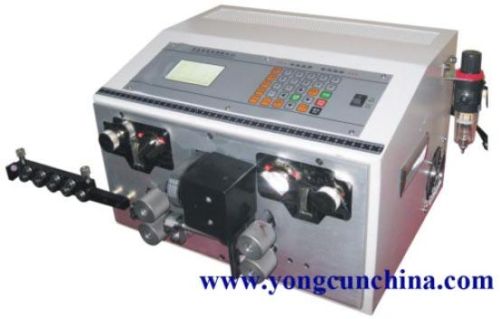

Contact SupplierWe are offering fully automatic wire stripping cutting machine-03.
Feature:
1)the longest length can cut 99999mm.
2) supports up to 15 intermediate stripping, and the stripping length can be set.
3) support up to 3 layers of stratified stripping , it's suitable for coaxial and sheathed cable.
4) the most store data is 99 programs,it can easily and quickly tranfer the process setting.5) it's suitable for awg14-awg32 wires.
model no:ycm1003a
available core cross-section range:0.1 - 2.5m㎡(14-32awg)
max cable diameter:ï¿ 4.5
cutting length:1-99999mm
twist wire length:0-999mm
cutting tolerance:±(0.002*l)(l=cutting length)
speed:10000pcs/hour l=50mm
memory function: the most store data is 99 programs
middle stripping function: intermediate can be divided into 15 stripping, the length can be adjusted.
Drive speed :adjustable
display: lcd display with english menu
drive mode:four wheels drive
blade material:hard tungsten steel
appropriate wire: suitable for kinds of wires,such as pvc,teflon,glass wires etc
power supply:220v/50hz 110v/60hz
power rating:160w
appearance size:450*450*360mm
weight:36kg.
