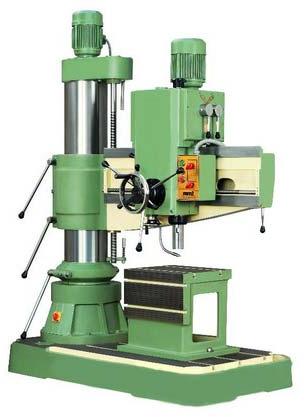

Fully Geared Radial Drilling Machine

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Fully Geared Radial Drilling Machine that we offer is intricately manufactured by our well-versed professionals using high-grade raw material. Our Fully Geared Radial Drilling Machine is highly appreciated by the customers for its outstanding performance, high strength and longer functional life. We are named among the renowned Manufacturers and Suppliers of Fully Geared Radial Drilling Machine from Punjab, India. Our Fully Geared Radial Drilling Machine is rigorously checked by highly skilled quality controllers before its final dispatch.

View More Details

Send Enquiry

Product Details

Technical Data

--	--	MM	MM	MM	MM
Drilling Cap.in Steel	--	25	32	40	50
Dis. Of Spindle Centre to Column	Max.	500	650	925	1100
Dis. Of Spindle Centre to Column	Min.	175	200	250	400
Dis. Of Spindle Nose to Base	Max.	550	680	950	1125
Dis. Of Spindle Nose to Base	Min.	125	150	250	310
Piller Diameter	--	140	175	200	225
Travel of Arm on Column	Vert.	675	675	900	1275
Travel of Arm on Column	Hort.	600	600	900	1176
