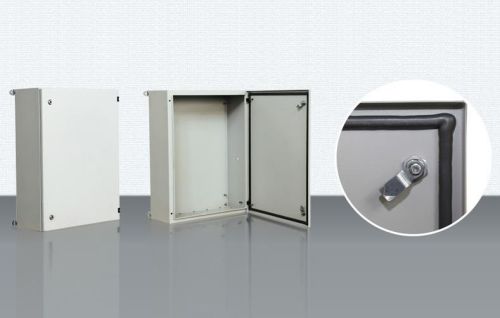

Fully Welded Single Door Box, Shape : Rectangular

WM Box – Fully Welded Single Door Box

This series of boxes unites best of welding and riveting technology. This series exhibits IP-66 fully welded boxes to modular double door boxes with riveted top plate. We ensure that a wide variety of boxes will satisfy a wide variety of electrical and electronic applications. WM series manufactured in CRCA sheet is surface treated in our Autophoretic 930 Dip-Priming Plant and Powder coated. WM series is also available in Stainless Steel 304 and 316L.

Features

 Door with all round formed in place PU seal ensures a reliable seal

Door opening 180° Heavy duty casting hinges / cam lock Door opening left to rignt, can be changed opposite

Heming to body edges For proper sealing with PU gasket. & increase gasket life Protection against scratches & cut

Offset for gland plate cutout For meet protection class 2-mm gland plate with 3-mm thk gasket sealing

Mounting plate in 2.5-mm Galvanized sheet & it can be adjustable 25-mm up or down

Enclosure colour – Ral-7035 textured paint

Accessories that can be fit

7a – Vertical channel (necessary for internal door, depthwise rail led light, limit switch, Door stopper

7b – Horizontal channel (necessary for led light, door stopper)

7c – Depthwise rail (for cable support)

7d – Internal door

7e – limit switch bracket

7f – LED light

7g – Door stopper

7h – Wall mounting bracket

7i – Drawing pocket

7j – Cable support bracket on Ø22.5 hole

7k – Pad lock arrangement All accessories are not applicable for all type boxes availability is mentioned in chart Enclosure colour – Ral-7035 textured paint
