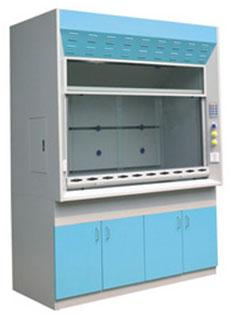

Fume Hood, Application : Laboratory

We are offering fume hood. Labsol laboratory fume hood is a ventilated enclosure designed to contain and exhaust fumes, vapors, mists and particulate matter generated within the hood interior. Fume hood structures are basically boxlike, with an open side (or sides) for access to the interior of the hood. A transparent, movable panel, called a sash, allows the user to restrict or enlarge the hood opening. The hood is connected, via ductwork, to an exhaust fan, usually located on the roof of the building in which the hood is located. The exhaust fan draws air from the room in which the hood is in through the hood opening and out through the ductwork. The speed of the air moving through the hood opening is known as face velocity.
labsol fume hood is fabricated from special grade pre coated mild steel sheet duly powder coated from outside and epoxy painted from inside. The inner walls of the working chamber is covered with epoxy coated asbestos or frp or hdpe lining or as required which duly provides better protection from acid fumes in the lab.
labsol fume hoods are aerodynamically designed considering most efficient airflow to the suction. Double wall feature provides easy access to utilities like water, gas, vacuum & electricity. Detachable base storage cabinets are provided with castors for easy maintenance, sigma offers variety of lining & work surfaces like granite, ceramic, s.s., p. P. & frp. Sash is provided with 6 mm toughened glass & counter balance is provided to achieve easy movement. High performance centrifugal blower is provided with different ducting materials like pppvchdpe etc.
Baffle
removable plates incorporated into the rear or top of the work chamber to form a plenum between the work chamber and the exhaust duct connection to promote uniform scavenging of fume and the point of discharge.
Exhaust system
all exhaust air ductwork, fan and associated equipment installed between the point of connection to the fume hood and the point of discharge.
