Contact SupplierWe are offering fume hood with safety cabinet.

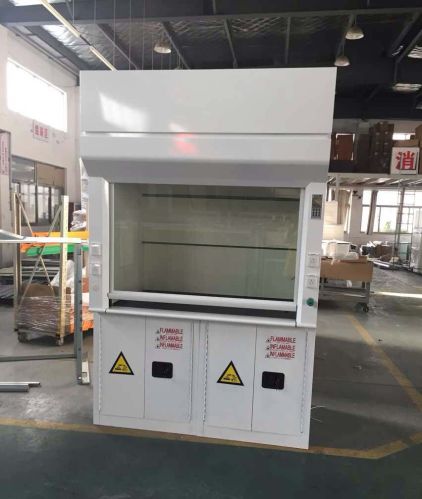

Product name: steel lab fume hood with safety cabinet
type code:jh-fc008
our fume hoods has been tested by sgs and got approval, it ensures the safety features of our products.
Advantages: with safety cabinet suitable to store flammable or corrosive liquids etc.
Size: 120015001800x850x2350mm(lxwxh)
cabinet material: 1.0-1.2mm cold-rolling steel covered with electrostatic spraying after folding, welding, polishing,acid cleaning, phosphorization and chemical resistance.
Inner liner panel:Â 5mm compact panel, acid and alkali resistant, temperature resistant, anti-moisture. Frp and stainless steel are also available for your selection.
Guide plate: 5mm compact panel, reasonable and knock-down guide structure. Concentrated and effective discharge air, letting off different poisonous gas.
Worktop: 19 mm thick solid epoxy resin worktop with 25 mm thick raised edge; acid and alkali resistant, anti moisture, impact resistant.
 Â
sash:Â 5mm thickness steel safe glass, it can be positioned at any level by pulling the handle. Can be operated through sliding glass window when sash is closed.
Lighting: inside lighting with 30w antisepsis daylight lamp.
Control panel:Â lighting switch, onoff switch, 4 sets of 220v10a versatile electric socket.
Accessories:Â gas outlet with control valve, water outlet with control valve, pp cup sink.
optional:
work top: lab phenolic resin or ceramic.
Blower : polypropylene exhaust fan, single phase or 3 phases.
Air flow monitor: lcd monitor or digital velocity alarm air flow monitor
