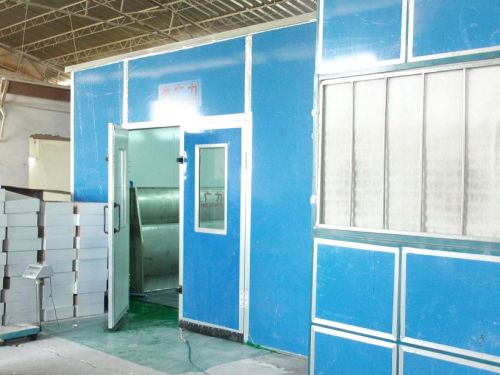

Furniture Spray Bake Booth

We are offering qx3000 furniture spray bake booth.
xin guang li qx3000 furniture spray bake booth technical parameter
1 spray room exterior size 6000x5000x3050(mm)(l/w/h) spray room interior size 5900*3900*2650(mm)(l/w/h)
bake room exterior size 8000*4000*3050mm(l/w/h) bake room interior size 7900*3900*3000mm(l/w/h)
2 door two sets door with 1.2mm aluminum alloy wrap-around . Door size:1000*2000mm(w*h). One set sliding door .color free choice.
3 wall 50mm eps (epispastics polystyrene ) with 0.426mm colored steel
4 lighting equipped with 8 groups (24 lamps) lamp boxes ,each group has three 40w philips lamp.
5 intake fan 2 sets siemens centrifugal fans. Each set parameter:yow5.6m.4kw 12500mâ³/h
6 exhaust fan 1 set axial flow fan. Parameter:yow4m 3kw.20000mâ³/h
7 filtration system room equipped with cc-g650 high-efficiency filtering device,which can effectively filter 5pm dust particles.air inlet opening has item 300 primary filter device.
8 heating system equipped with 24 groups of infrared carbon fiber heating pipe(1000w each group).baking room temperature setting:30 centigrade to 40 centigrade
9 roof 50mm eps with 0.426mm colored steel , top frame is 40*80mm square tube
10 electric control system(2 sets) painting , lighting, failure light, power switch, emergency stop, time accumulator
11 water curtain table double-deck water curtain made of stainless steel, size:2800*1400mm(w/h) , 1 set water pump,
12 voltage 380v,50hz
13 wind speed more than or equal to 0.25m/s
14 light intensity more than or equal to 1000lxs
15 total power 37kw
16 floor the column is made of u-steel which is convex shape.checkered plate through high anti-rust treatment
17 air outlet pipe 0.8mm galvanized plate with stiffener , 2 straight pipe, 1 bend pipe
18 price 11000$(factory price)
