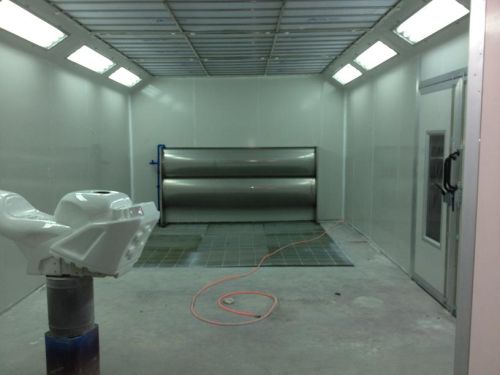

Furniture Spray Booth

We are offering furniture spray booth.
Outer size 8000×4000×3050（mm）（l×w×h） inner size 6900×3900×2650（mm）（l×w×h）
entrance door one set door with 1.8mm aluminum alloy wrap-around .size:1000*2000mm(w/h)
wall 50mm eps (epispastics polystyrene )with 0.426mm colored steel
lighting equipped with 8 groups (24lamps) lamp boxes, each group has three 36w philips lamp
intake fan air supply: 2 sets environmental special fans, each fan parameter:yow5.6m.1.5kw.25000m3/nintake air from the roof , exhaust from the down side. It can settle based on the current situation
exhaust fan 1 set axial flow fan:yow4 m. 3kw.18000m3/h
filtration system inlet fan has item 300 pre-filter equipment, room equipped with cc-g650 high-efficiency filtering device,which can effectively filter 5pm dust particles.air inlet has item 300 primary cotton filter . Roof is made of light steel.
roof roof is made of galvanized sheet. Roof construction is consist of six square tubes (each tube size:40*80)
control system including painting , baking, temperature controller, fault led, power switch, emergency stop switch, and hour meter
water curtain table 1 set stainless double deck water curtain table ,size:2800×1400（mm） 1 set special pump
voltage 380v 50hz
wind speed more than 0.25m/s
light intensity more than 1000lx
total power 8kw
floor galvanized grille. The column is made of u-steel which is convex shape.checkered plate use high anti-rust treatment .
air outlet pipe the wind pipe is made of galvanized plate(thickness is 0.8mm) with stiffener. Two straight pipes(each pipe size:700*700*1000), one bend pipe.
