Fusion Splicer Manufacturer in Shanghai China

Fusion Splicer, Brand Name : Tribrer

Get Latest Price

MOQ1 Set(s)
Brand NameTribrer
Number Of FlowerFusion Splicer
CommodityOFS-700
Monitor5 inch color LCD
Supply TypeManufacturer, Exporter
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

Zhejiang Tribrer Communication Limited

Shanghai

View Number

Member Since 14 Years
Nature of Business Manufacturer
Year of Establishment 2004

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Number Of FlowerFusion Splicer
Brand NameTribrer
CommodityOFS-700
Power SupplyAC/DC adapter or Lithium battery
Average Splice Loss0.02dB(SM), 0.01dB(MM), 0.04dB(NZDS), 0.04dB(EDF)
Heating timeTypical 25s
Dimensions146mm * 131mm * 52mm
Electrode life2500 times
Monitor5 inch color LCD
Splicing timeTypical 9 sec, with standard SM fiber
Applicable FibersSM, MM, NZ-DS, EDF
Battery capacityTypical 200 cycles (splice and heat)
Fiber MagnificationX/Y: 200 times; X or Y: 400 times
Weight1.551kg
Fiber aligning methodCore aligning
Storage of splice result10000 results
Protection Sleeve Length40mm, 60mm or others
Environmental Conditions-10~+50℃(operation temperature), 0~95% RH(humidity), 0~5000m(altitude)
Tension Test2.0N (Standard)

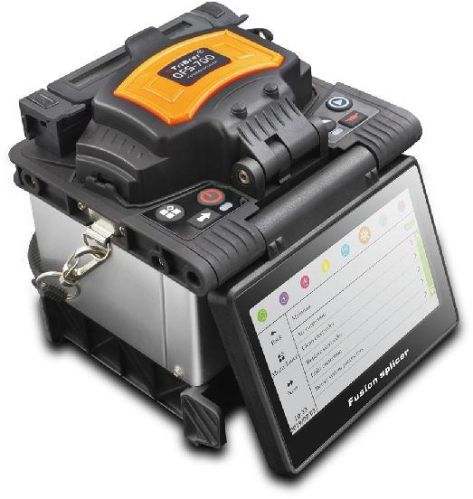

We offer Fusion Splicer. The OFS700 is the advanced core alignment fusion splicer. With a solid performance,the OFS700 is speed and work flow optimised. 9 second splice time and 25 seconds heat time making it the fastest available, all while delivering Tribrer's renowned low loss splice performance in a compact ultra-ruggedized design.
Features: Large,high visibility 5 inches high resolution colorful LCD display
FAST! 9 second splice time 25 seconds heat time
Long life battery provides 200 splice heat cycles
Extended electrode performance with 2500 splices per set
Simultaneous X and Y views with 200 times magnification
Fully ruggedized for shock,dust and moisture
New developed technology providing wind and dust resistance
USB Port supported
Splicing mode : Auto & Man & Half Auto
Storing 10,000 groups of splice results
