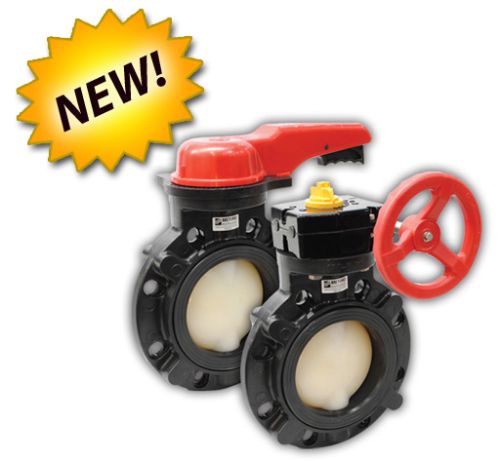

Fybroc Series NM WSB Wafer Style Butterfly Valves

Fybroc's new line of non-metallic, corrosion resistant butterfly valves are ideal for handling corrosives, seawater, solvents and other difficult liquids.
Standard model (1.5 - 12" 40 - 300mm) has a black polypropylene (PP) body, a polyvinylidene fluoride (PVDF) disc and a fluorocarbon (Viton®) seat for superior chemical resistance and temperature capability
316 stainless steel shaft has full engagement over the entire length of the disc and is a non-wetted part
Only solid plastic disc and elastometric liner are wetted parts
Stem retainer - polypropylene retainer to prevent stem removal
Seat over tightening protection - molded body stops and seat stress relief area
Spherical disc design offers increased Cv, ultimate sealing and high cycle life
18 position throttle plate for lever handle style
