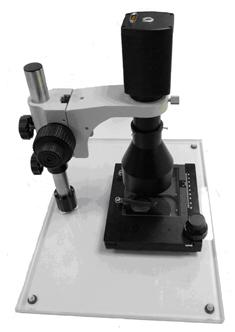

FYM-4121/4132 Infrared Microscope

Functional characteristics
 Imaging of infrared radiation from object and display and display of object temperature distribution
Positioning of anomaly temperature point
NUC
Defective pixel processing
Integration time adjustment
Image electronic zooming, positive/negative image display, manual/automatic contrast and brightness adjustment
Technical da
ta
Model FYM-4121 Infrared Microscope FYM-4132 Infrared Microscope
Type VOx Amorphous silicon micro-radiometer
Pixels 320 x 240 384 x 288
Waveband 8 ~ 14μm 8 ~ 14μm
Magnification 0.8 x or customized 0.8 x or customized
Observation coverage ≥ 10mm x 10mm (0.8 x ) ≥ 10mm x 10mm (0.8 x )
Operation distance ≥ 20mm ≥ 20mm
Focusing Manual Manual
Measurement range -20℃ ~ +200℃, extendable as requested by customer -20℃ ~ +200℃, extendable as requested by customer
Temperature accuracy ±2℃ or 2%(measurement range) ±2℃ or 2%(measurement range)
Correction Manual/automatic Manual/automatic
Display Temperature distribution in color display available Temperature distribution in color display available
Image output LVDS LVDS
Microscope pedestal 200 x 200(minimal) 200 x 200(minimal)
Power supply AC 220V AC 220V
Operation temperature -20℃ ~ 50℃ -20℃ ~ 50℃
