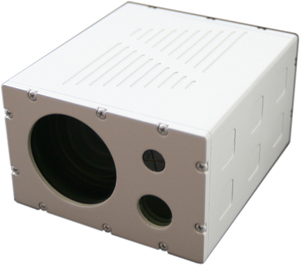

FYM-6232 Laser Range Finder

Functional Characteristics
 high Accuracy Ranging
 easy Operation
 simultaneous Multiple-target Distance Measurement
 small Size and Light Weight
 high Environment Adaptability and Reliability
Technical Data
wavelength 1.06μm
laser Type nd: Yag
detectors apd
ranging Capability 150m ~ 10km
ranging Accuracy ± 5m (± 2.5m, ± 1m Optional)
repetitive Rate 10ppm(typical), 1hz(in Emergency)
false Alarm Rate ≤ 3%
data Interface rs422
power Supply 18v ~ 36vdc
dimension ≤ 120mm X 110mm X 70mm
weight ≤ 1.5kg
operation Temperature --30℃ ~ 60℃
environment Adaptability strong Vibration and Shock Resistance, as per High/low Temperature, Humidity, Salty Fog, Sand and Water Tightness Standard
