G150 Automatic Glass Bottle Screen Printer

₹ 59.15 Lakh / Set

MOQ1 Set(s)
Automatic GradeFull automatic
Plate TypeScreen mesh
Brand NamePSI
Power300KG
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

Printing Systems International Company Limited

Member Since 10 Years
Nature of Business Supplier
Year of Establishment 2009

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Number Of FlowerAutomatic screen printer
Brand NamePSI
Country of Origin380V
ConditionCE Standard
ApplicationAll shapes of bottles/containers, glass and plastic containers
Plate TypeScreen mesh
Automatic GradeFull automatic
Power300KG
After-Sales Service ProvidedReplace vulnerable components (If within the warranty, they will be replaced for free)
Model NumberG150

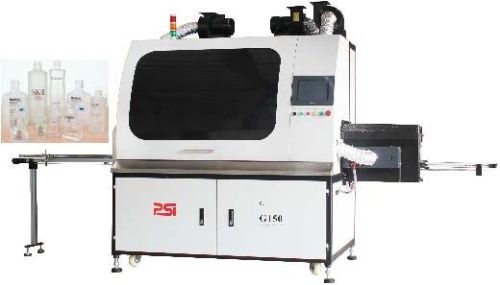

G150 Automatic glass bottle screen printer

Application : The G150 is designed for multi-colour decoration of all shapes of bottles/containers at high production speeds. It is suitable for glass and plastic containers printing with UV ink or thermoplastic ink. All servo motor driven and fast speed make the G150 ideal for off-line or in-line 24/7 production.

General Description:

Automatic loading system with belt and multi axis servo driven robot
Printing system with all servo driven: printing head, mesh frame, rotation, container up/down.
Super quick and easy change over from one product to another. All parameters automatic setting simply by CAD drawing uploading to PLC. Product change is 15 minutes only per color.
Industrial PLC control & touch screen operation system
All Omron and Yaskawa servo motors with best accuracy
Automatic unloading with servo robot
Safety operation with CE standard
Auto dust cleaning flame treatment and UV curing system for plastic and UV printing

Tech-data

Parameter \ Item		G150, G150C, G152	GS152TP, GS152L	GS154TP, GS154L
Max. Speed (360°print) (pcs/min)	Round	40	30	20
	Oval	35	25	15
	Square	20	15	10
Power		380VAC 3Phases 50/60Hz
Air consumption		5-7 bars
Printing Diameter		25--60mm
Printing Length		50-150mm
Printing stroke left/right		300mm
