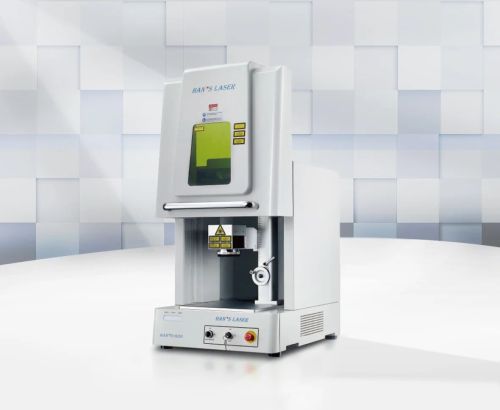

G20 Fiber Laser Marking Machine Small, Compact

1. Various metal materials, part of non-metal materials.
2. The fiber optic laser oscillator marker has advantage of high beam quality and high reliability. It is suitable for processing fields that need high marking depth, smoothness and accuracy.
1.Small and compact size, use common air-cooling system.
2.Fiber output, can apply flexibly, and easy to make 3D processing system.
3.Install backward reflecting isolator, which uses the particularity of wavelength and direction of laser, and the special structure inside the backward reflecting isolator, to block the laser reflected by work piece, in order to avoid the laser enter the laser oscillator again to damage the laser oscillator.
Specifications
Model G20
Laser output power 20W
Focus lens F160 (standard) F254(optional)
Lens type F160 (standard) F254(optional)
Marking area 3.9''×3.9'' 6.3''×6.3''
Marking speed 300 characters/sec, height=0.039'' 300 characters/sec, height=0.039''
Min. character size 0.01'' 0.02''
Min. line width 50μm 90μm
