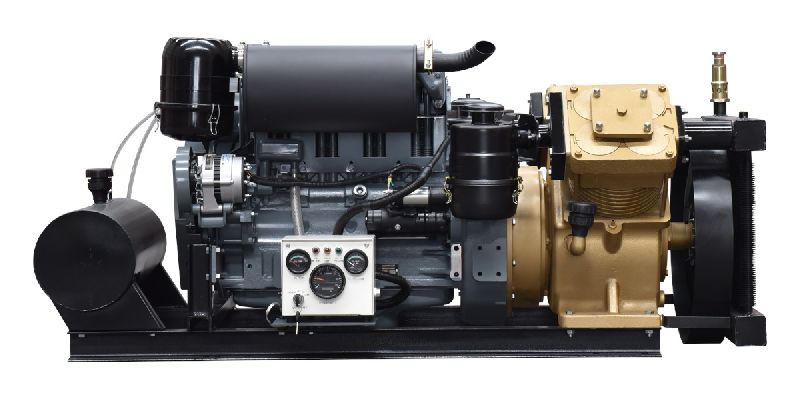

G220-2 Compressor With New Diesel Engine, Pressure : Low Pressure

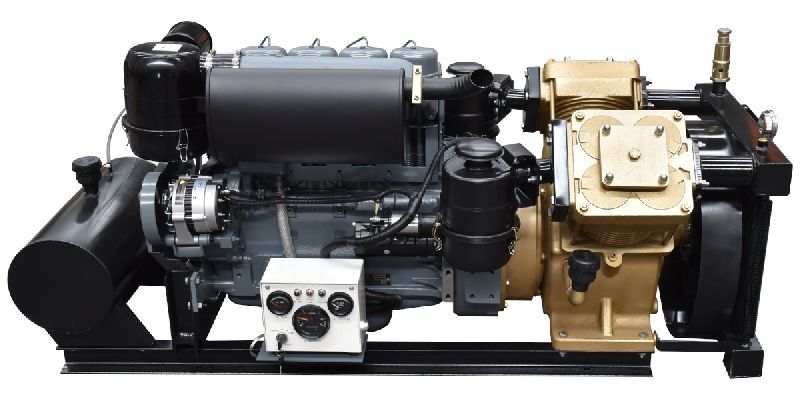

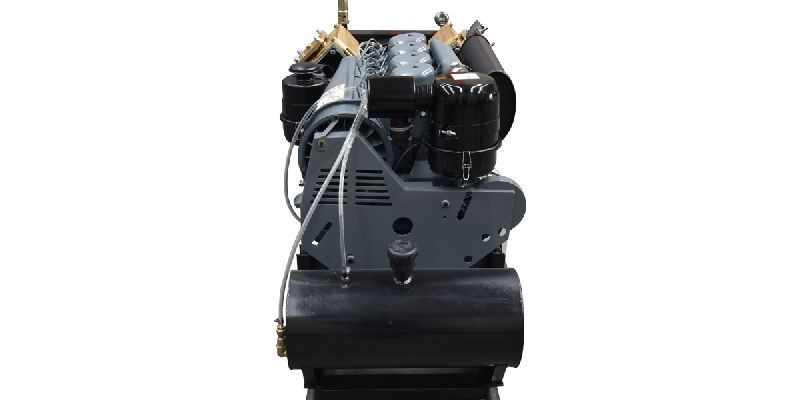

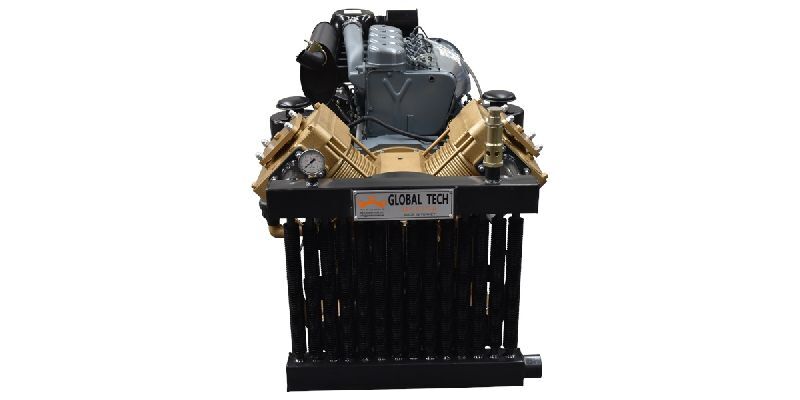

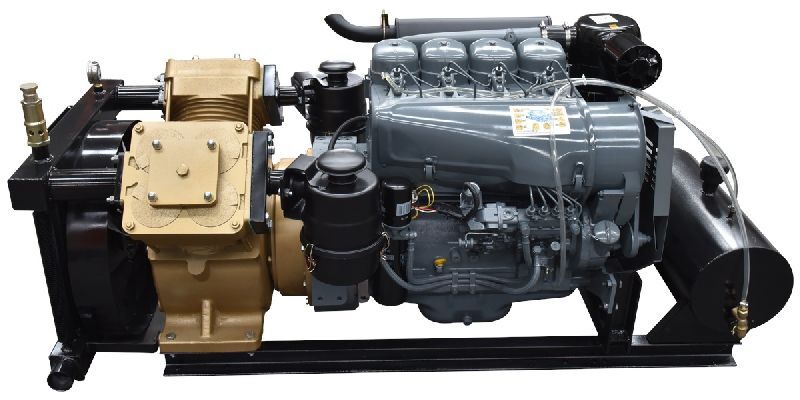

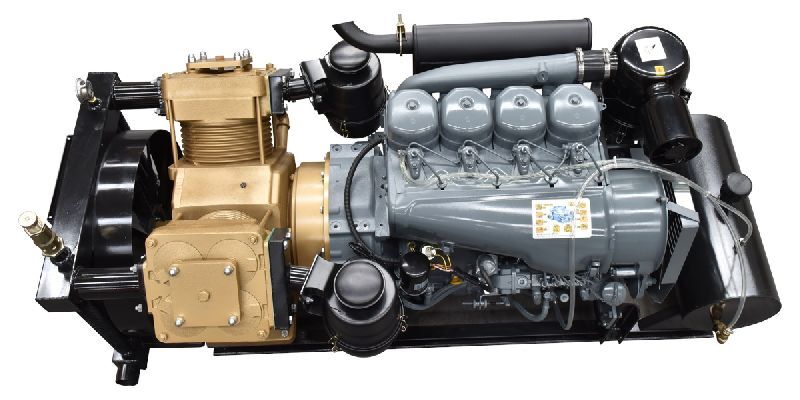

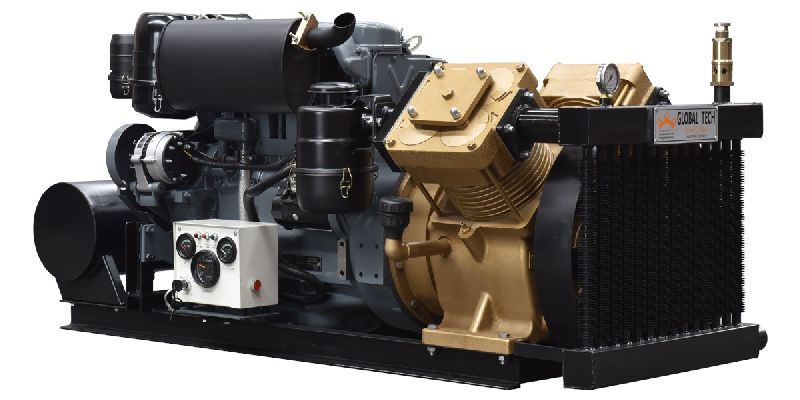

g220-2  air compressor with new diesel engine

standard features :

model-g220-2 : piston type

capacity : 10200 lt/minute air flow

working pressure : 2.5 – 3 bar

discharge air flow rate : 10.2 m3/min (610 m3/hr) at 2.0 bar g (29 psi g)

cylinders:   2x220 mm

piston stroke:  90 mm

cooling:          air cooling

cement discharge time :  1.8 m3/min

speed : 1500 rpm

final temperature :  50 – 55 deg c

engine / motor : maye  f4l912  4 cylinder 80 hp diesel engine – air cooled

                            (electric motor could be installed instead of diesel engine as alternative)

weight of complete unit : 840 kg.

dimensions : 1918 x 923 x 1000 mm

market usage :

this reciprocating piston type air compressors is designed for perfectly use on cement bulkers and cement silos, at cement plants / cement factories, concrete ready mix plants, crushers, interlock factories and all powder chemicals manufacturing plants where the powder materials being moved and transported using air pressure / air flow. The materials can be moved by using this type of compressors are dry cement, lime, gypsum, sand, dolomite, bentonite, barite, ash, powder chemicals, etc.

general specs:

the g220-2 air compressors direct coupled with 4 cylinder air cooled diesel engine is independent working unit which gives flexible movement of tractor head and bulker unit.

high efficient special developed direct coupled system for pneumatic transportation.

vibration free work by special balanced crank.

the whole unit is assembled on a strong chassy frame and ready to be installed on bulker trailer or structure.

the perfectly designed air cooled system keep the unit working on extreme weather conditions with optimum performance.

the rubber mountings should be fixed between the main frame and the trailer chassy in order to provide vibration tolerance.

the standard package:

the g220-2 air compressor comes with following standard equipment:

deutz f4l912 diesel engine  - 4 cylinder air cooled diesel engine or electric motor

control panel

strong chassy frame

oil type air filters

safety releif valve set at 2.5 bar(g)

instructions and maintenance procedure
