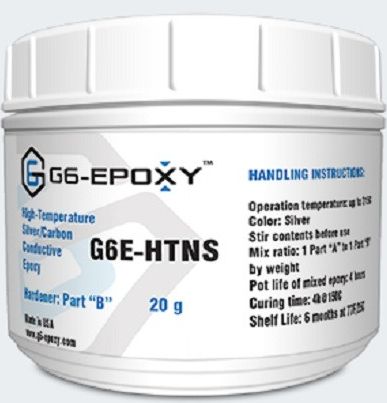

G6E-HTNS High Temperature Silver Carbon Conductive Epoxy

Our Conductive High-Temperature Silver/Carbon G6E-HTNS Epoxy has been developed for applications that require high-temperature operation (up to 316°C/600 F), excellent moisture and chemical resistanceOur G6E-NS series of epoxies has been developed based on advanced proprietary technology that requires less silver content to be at par with leading silver based epoxies in terms of electrical propertiesThis improvement makes G6E-NS less dense, more flexible, and allows for stronger adhesion to the target substrateCarbon fillers add superior durability, fatigue and crack resistance along with low electrical resistance.

G6E-HTNS is a two-component electrically conductive adhesive that is engineered to combine bond strength and high electrical conductivityThe epoxy composite is based on the nanocarbon mixture and silver particlesThe G6E-HTNS resin works in high temperature and demonstrates excellent adhesion to a variety of materials including plastics, metals, glass and ceramicsIt offers superb resistance to moisture, solvents and oxidants as well as exceptional durabilityThe G6E-HTNS adhesive can be used as a solder replacement for applications where heating the component is desirable.

KEY FEATURES:

• High Temperature Silver/Carbon filled epoxy up to 316°C / 600 F
• Extended pot life
• Glass transition temperature 140 °C
• Excellent adhesion to a variety of substrates
• Solder replacement

CURING INSTRUCTIONS: Best results are obtained when the product is cured at one of the following schedules: 4 hours @ 150°C (302 F)For optimum properties, post cure for 1-2 hours @ 180°C (350 F).
