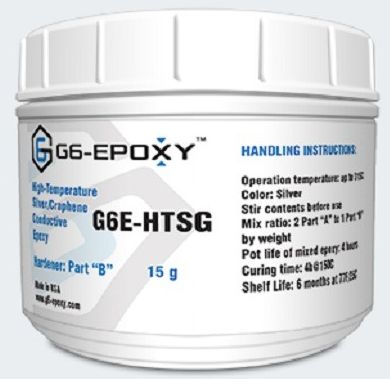

G6E-HTSG High Temperature Silver Graphene Conductive Epoxy

G6E-HTSG is a two-component electrically conductive adhesive that is engineered to combine bond strength and high electrical conductivityThe epoxy composite is based on the mixture of graphene and silver particlesThe graphene nanoparticles increase the electrical conductivity of the epoxy and enhance the strength of the material and prevent the formation of cracks, improving the durability of the bondThis is especially important for bonding dissimilar materials subjected to the temperature variations and shocks.

The G6E-HTSG resin works up to 316°C (600 F) and demonstrates excellent adhesion to a variety of materials including plastics, metals, glass and ceramics.

KEY FEATURES:

• High Temperature Silver/Graphene filled epoxy up to 316°C / 600 F
• Extended pot life
• Excellent electrical conductivity: 0.0005 Ω·cm
• Glass transition temperature: 129 °C
• Great for die attachments and solderless interconnections

CURING INSTRUCTIONS: Best results are obtained when the product is cured at one of the following schedules: 4 hours @ 150°C (302 F). For optimum properties, post cure for 1-2 hours @ 180°C (350 F).
