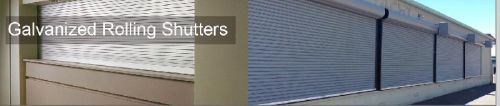

Galvanized Rolling Shutter

We guarantee to deliver a flawless array of products to the clients and for this; we store the entire lot under safe conditions in our capacious and well-structured warehouse. Rely on us for timely delivery as we are assisted with up-to-date transit facilities and logistics services.

Applications :

• Warehouses
• Factories
• Large apertures (openings in excess of 16sqm)
• Industrial units

Key Facts :

• Can span distances of up to 10 Meters Wide
• Can be powder coated or plastisol coated to any RAL Colour
• Can be made from 18, 20, or 22swg as standard and any other gauge if requested
• Wicket access doors can be incorporated into the shutter if needed

Specification/Technical Data
Curtain : The curtain is constructed from galvanised continuously interlocked steel laths that are securely held in place by end locks. A number of thicknesses and profiles are available according to individual circumstances such as size, wind loading etc. Bottom rails are generally galvanised and roll-formed into a tee section.
Guides : Vertical guides are formed from rolled steel or fabricated dependent on size and are supplied with appropriate angles for fixing to the structure.
Endplates : Mild steel of appropriate thickness in relation to door thickness is prime painted and supplied with angles for fixing to the structure.
Shaft/Barrels : Our shaft/barrels are normally made from a seamless steel tube of adequate diameter to counteract deflection and hold in bearings or cups attached to the endplates.
Finish : Comes galvanised with non-galvanised parts prime painted as standard or two coat of zinc/red/yellow oxide. Customers can choose to have a powder coating of almost any colour as an additional extra.
Operation : Shutters over smaller openings are typically powered by a 240-volt single phase tubular/side motor whereas larger shutters are operated using a 400-volt 3 phase geared motor. Adjustable limit switches are incorporated to stop the shutter at the end of each travel. Standard controls include open/close/stop buttons for geared motors and rocker switches on single phase tubular motors.
Options/Variations Operation/Controls
Electric
(Not all options are available on all size shutters)

• Key switch
• Radio/remote Control
• Rocker switch
• Timer closing
• Loop and Radar operation
• Smart phone
• Swipe Card activation

Manual :

• Spring and lock operation (for smaller shutters)
• Gear operation for larger shutters

Lath Design : A number of lath designs are available from 55mm flat lath for smaller openings to 78mm curved and 120mm flat laths for exposed and industrial locations. The laths can be perforated or punched to allow ventilation and/or provide visibility into the premises whilst maintaining the required security.
Finishes : Can be Polyester powder coated or plastisol coated in a range of standard RAL colours’ for an extra charge.
Accreditations : All of our security shutters guarantee a high level of security against vandalism and theft.
Hoods : Galvanised steel hoods can be supplied to cover the coiled shutter and motor.
Operation Options :

• Manual spring and Lock operation (for smaller shutters)
• Gear operation for (larger shutters)
• Electric – Single phase (for lower use and smaller shutters)
• Electric – Three phase (for large or heavily used shutters)
• Please Note: our electrically operated shutters are available with wall mounted push buttons, key fobs and many other access devices

Finishing Options :

• Galvanised finish (Standard for steel)
• Aluminium finish (Standard for aluminium)
• Plastisol finish
• All RAL powder coat options.
