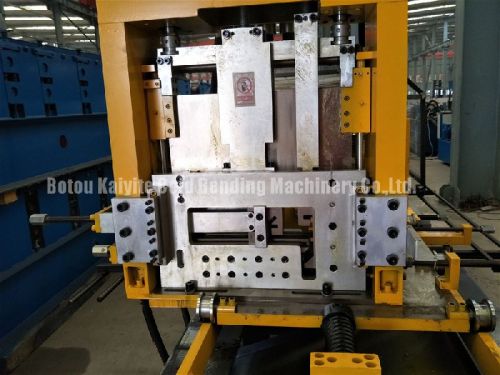

Galvanized Sheet C Z Purlin Production Line

Galvanized  Sheet C Z Purlin Production  Line In order to delivery our client a perfect machine , we will test and debug the galvanized sheet cz purlin production line again and again until it works smoothly .We will not bring any trouble to the clients . We are the supporter to make your business bigger and stronger. Decoiling the sheet→Sheet guiding→Roll forming→Measure length→Cutting the panel→Panels to product stand A. full automatic B . lower cost  C. high efficiency D. reliable working  E. low energy consumption Technical parameters: Material thickness: 1.5 - 3 mm         Size of purlin : 80-300mm Power: Voltage : 380V3PH50HZ Main Motor : 7.5 KW Hydraulic Motor : 5.5 KW Hydraulic Pressure : 10-12MPa Main machine Flattening rollers : 7 rollers Main forming station : 13 steps Forming Shaft : diameter 85 mm, 45# steel thermal refining Roller Material : GCR15 bearing steel quenching HRC58-60° Main machine body : 350# H steel welded Transmission : Chain and Sprocket, chain size 2 inch Wall plate : 20 mm thickness Blade material : Cr12 mould steel with quenched treatment60-62° Punch Mould (if needed) : Cr12 quenched Forming Speed : 8-15mmin for standard solution Hydraulic cutting system : fully automatic .  Material of blades: Cr12, quenching treatment. Forming rollers Specification: 45# steel, CNC Lathes, heat treated 45# steel, roller surfaces polishing, hard plating.
