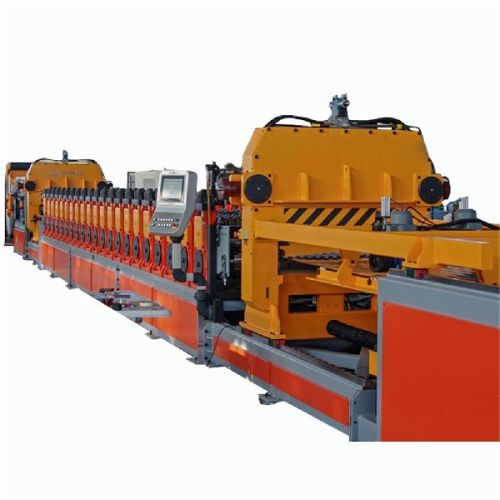

Galvanized Steel Silo Building Machine

The Galvanized Steel Silo Building Machine steel coil is pulled out from the uncoiler, the steel plate is bilaterally bent by the forming machine, and then the upper and lower steel plates are occluded by the occluder to form the silo wall, and at the occlusion, the rib section which plays a strengthening role to the silo is formed. The occluder pushes the already formed silo wall spirally up and gradually forms a silo with a certain height. There is no welding point in the silo, and the rib section of the silo bite has enough air tightness. The whole silo has high preparation efficiency, short construction period, labor saving and time saving. At present, Steel Silo Roll Forming Machine is widely used in powder tank construction of concrete mixing plant. This Automatic Silo Roof Machine warehouse has the advantages of installation block, large reserves, strong adaptability, low cost, easy to mechanized transportation and so on. 1. Profile Drawing and Products for Reference 2. Production Process De-coiler- feeding with guide→ Straightening device→ main roll forming machine→ Curving device→ run out table 3. Constituent part (1) Silo Roof Roll Forming Machine: making the material bend and initial machine-shaping, meanwhile, it will bend the material to the silo required radius of curvature. (2) Bending machine: it will roll cooperate with good molding materials bender seaming together (3) Load bearing support: Given the right diameter of silo.
