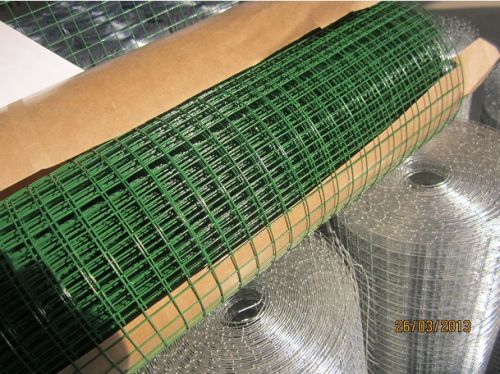

Galvanized Welded Wire Mesh

We are offering galvanized welded wire mesh.
specification list of welded wire mesh
opening wire diameter
in inch in metric unit(mm)
1/4" x 1/4" 6.4mm x 6.4mm 22,23,24
3/8" x 3/8" 10.6mm x 10.6mm 19,20,21,22
1/2" x 1/2" 12.7mm x 12.7mm 16,17,18,19,20,21,22,23
5/8" x 5/8" 16mm x 16mm 18,19,20,21,
3/4" x 3/4" 19.1mm x 19.1mm 16,17,18,19,20,21
1" x 1/2" 25.4mm x 12.7mm 16,17,18,19,20,21
1-1/2" x 1-1/2" 38mm x 38mm 14,15,16,17,18,19
1" x 2" 25.4mm x 50.8mm 14,15,16
2" x 2" 50.8mm x 50.8mm 12,13,14,15,16
technical note:
1,standard roll length: 30m;width: 0.5m to 1.8m
2,special sizes available at request
3,packing: in waterproof paper in rolls. Custom packing available at request.
galvanized fencing mesh
opening wire diameter
in inch in metric unit(mm)
2" x 3" 50mm x 75mm 2.0mm,2.5mm,1.65mm
3" x 3" 75mm x 75mm 2.67mm,2.41mm,2.11mm,1.83mm,1.65mm
2" x 4" 50mm x 100mm 2.11mm,2.5mm
4" x 4" 100mm x 100mm 2.0mm,2.5mm
technical note:
1,standard roll length: 30m;width: 0.5m to 1.8m
2,special sizes available at request
3,packing: in waterproof paper in rolls. Custom packing available at request.
