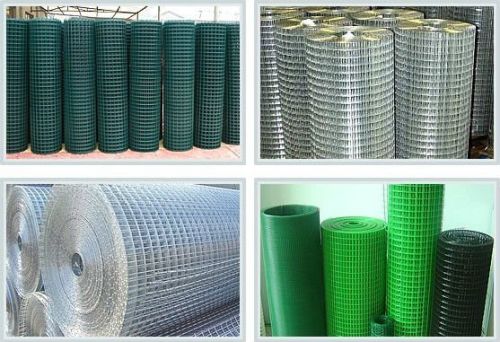

Galvanized Welded Wire Mesh

We are offering galvanized welded wire mesh,
electro galvanized welded wire mesh, welded wire mesh, galvanised welded wire mesh, pvc coated welded wire mesh, iron wire, pvc
welded wire mesh is made of high-quality iron wire through automatic process and sophisticated welding technique, laid horizonta
varieties available: galvanized after weaving, galvanized before weaving, hot-dipped galvanized, pvc coated
specification
specification welded wire mesh
opening
wire diameter bwg
in inch
in metric unit(mm)
14" x 14"
6.4mm x 6.4mm
22, 23, 24
38" x 38"
10.6mm x 10.6mm
19, 20, 21, 22
12" x 12"
12.7mm x 12.7mm
16, 17, 18, 19, 20, 21, 22, 23
58" x 58"
16mm x 16mm
18, 19, 20, 21,
34" x 34"
19.1mm x 19.1mm
16, 17, 18, 19, 20, 21
1" x 12"
25.4mm x 12.7mm
16, 17, 18, 19, 20, 21
1-12" x 1-12"
38mm x 38mm
14, 15, 16, 17, 18, 19
1" x 2"
25.4mm x 50.8mm
14, 15, 16
2" x 2"
50.8mm x 50.8mm
12, 13, 14, 15, 16
note: general roll width of welded mesh: 3', 4', 5', 6'. Length of welded wire mesh: 100'. P. V. C. Coating: 0.4mm-0.6mm. Special sizes available at request.
