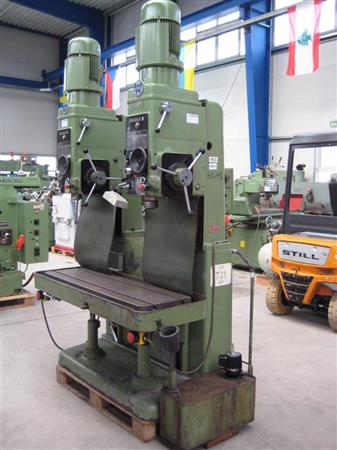

Contact Supplierwe are offering gang drilling machine.
stock-no. 1106-bo249
type of machine gang drilling machine
make webo
type 2 x gradua 30
year of manufacture ca. 1975
type of control konventionell
storage location ex store jena
country of origin germany
technical details
number of spindles 2
bore capacity in steel (diameter) 2 x 5 - 30 mm
bore stroke mm
dimensions of the machine ca. 1600 x 1000 x2500 mm
feed stepless 2 x 0,07 - 0,33 mmin
gear box -drehzahlen 2 x 70 - 1600 umin
spindle diameter 2 x 72 mm
drilling depth 700 mm
arm length 2 x 800 mm
spindle 2 x mk3 kw
t-slots 2 x 18 30
table surface area 1300 x 400 mm
spindle speeds: 701402002804005608001.600 u min
motor speeds: 20 x 1410 u min
engine output 2 x 2,2 3,3 kw
voltage 2 x 380 v
