Gantry CNC Milling Machine

Gantry type CNC milling machine is suitable for rough, finishing all kinds of horizontal face, inclined plane, vertical plane etc., Milling machine can also be used as large-scale surface grinder and universal milling  machine.
Feature of Gantry type CNC milling machine
1 All the gears are purchased from legal manufactures, low noise and prolonged wear-resisting.
2 Spindle adopt nitrogen treatment and has long serve life.
3 Castings are made from resin sand after aging treatment.

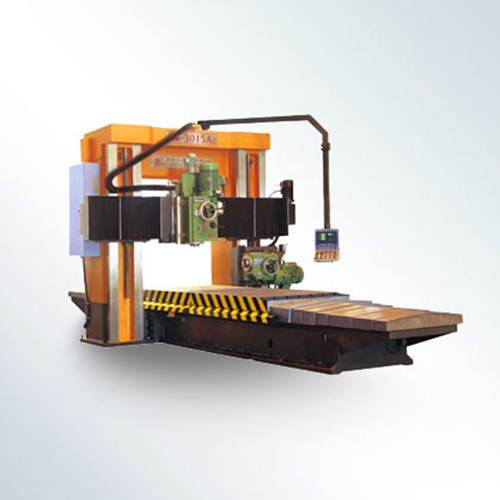

Photo of Gantry type CNC milling machine
Technical specification of 3 axis gantry type milling machine X2140
Maximum workpiece size: Long 8000
Maximum workpiece size: Width 4100mm
Maximum workpiece size: Height 1400mm
Table speed 30-1500mmmin
Number of milling head 2
Power of Milling head 5.5kw7.5kw
Number of Side head 1
Power of Side head 5.5kw
Beam lifting speed 570mmMinute
Machine maximum volume: Long 17000mm
Machine maximum volume: Width 6400mm
Machine maximum volume: Height 6800mm
Machine weight 80T
