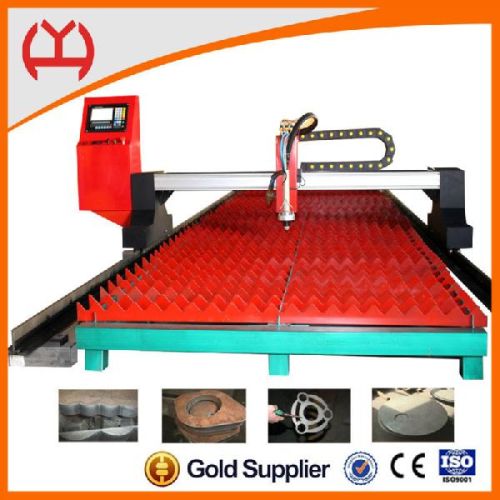

Main technical performance indexes of products
cutting shape:any shapes
lcd display dimension:7.0inches
effective cutting width (x axis):2500mm
effective cutting length (y axis):6000mm
cross beam length:3000mm
longitudinal rail length:7500mm
cutting speed:0-8000mm per minute
plasma cutting thickness:2--20mm ( depends on plasma power source capacity)
flame cutting thickness:6--200mm
drive mode:bilateral drive
cutting mode:flame and plasma
ignition device:auto ignition device
height regulating device
arc voltage height and electric adjustable high
file transmission:usb transmission
gas pressure:max. 0.1mpa
oxygen pressure:max.0.7mpa
cutting gas:acetylenepropane
plasma power source
optional:plasma air only pressed air
plasma air pressure:max. 0.8mpa
cutting precision:±0.5mm national standard jbt10045.3-99
control accuracy:±0.01mm
power supply voltage frequency:220v110v 50hz 60hz
rated power supply:200w
working temperature :-10°c-60°c. Relative humidity, 0-95%.
