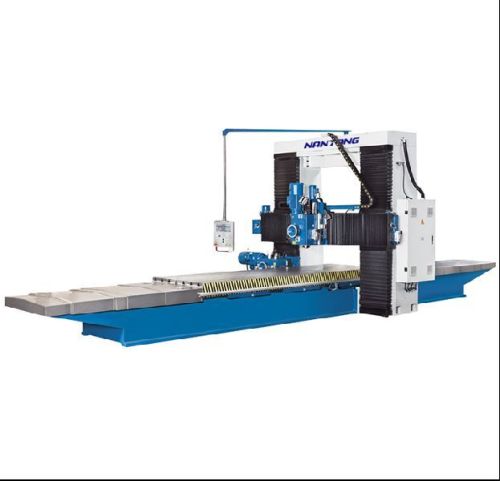

Gantry Milling Machine, Packaging Type : to customer require

Main features
1.this type of machine adopts advanced technology, typical of good performance , reliable structure, easy operation, convenient maintenance, is widely used in mechanical processing department for medium and heavy black non-ferrous metal plane, inclined plane and the groove surface milling, etc.
2.it can use all kinds of standard cutter, and has large cutting torque and cutting depth.
3.the machine bed, table, bar are manufactured with high-quality cast iron, and have two quenching to eliminate the stress and deformation.
Model yj-sk2016
distance between two columns 1600mm
working table size 2000ã�1200mm
working table load 2000kg
t-slot 7-28ã�160mm
max cutting length x 2000mm
max cutting width y 1400mm
vertical travel z 800mm
spindle taper bt50
spindle speed 0-6000rpm
spindle motor (servo) 7.5kw
x,y,z fast-moving 10mmin
max cutting feedrate 0.1-10mmin
tool max diameter î¦100mm
tool max length 300mm
tool max weight 15kg
cnc system siemens
position accuracy â±0.03300mm
repeat accuracy â±0.01500mm
machine weight 18ton
