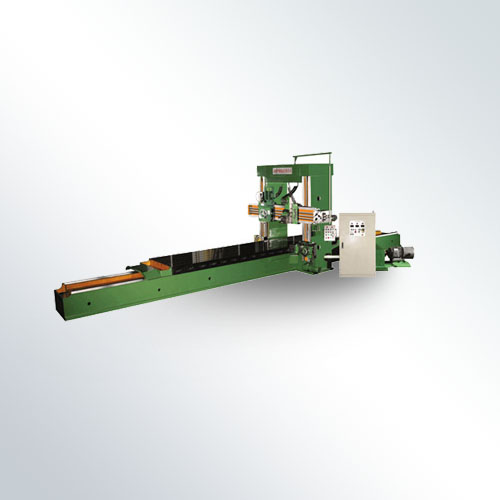

Gantry Planer Milling Machine

We are offering gantry planer milling machine.
Hengshui shengyong heavy-duty machine tool manufacturing co.,ltd specializes in the manufactures and sells of metalworking machines: vertical turret lathe,cnc lathe machine,single column vertical lathe , double column vertical lathe machine ,heavy duty horizontal lathe machine, gantry milling machine(plano miller), gantry planer milling machine, roll turning lathe etc.
If interested, please feel free to contact us.best regards, abby shang
technical parameters
name, pattern
b2016a
b2020a
workbench
table size (mm)
l
4000
6000
12000
6000
8000
w
1400
1700
drive motor power (dc) (kw)
55
75
55
75
speed range (m min) stepless
4-80
t "-slot number
7
9
the distance between two columns (mm)
1700
2050
elevating speed of crossrail (mm min)
570
vertical tool post
feed rates (mm)
horizontal
0.2-3.25
3.5-20
vertical
0.15-1.3
1.25-7.5
rapid speed (mm min)
horizontal
1600
vertical
600
plane
feed rates(mm)
vertical
0.2-2
2.0-11.5
rapid speed of vertical travel (mm min) degrees
920
maximum section of planing tool bar (mm)
60×60
power of main motor(kw)
63.3
82.5
63.3
82.5
power supply
400v,155a
210a
155a
210a
straightness of machined surface (mm)
0.021000
max machining dimensions
l
4000
6000
12000
6000
8000
w
1600
2000
h
1250
1550
max machining weight (kg)
10000
15000
25000
15000
20000
overall dimensions
l
9000
13000
25000
13000
17000
w
4500
4850
h
3800
4220
total weight of machine (kg)
40000
46000
72000
49000
56000
notice:this technical parameters is for reference only, the contract are based on the standard of technology agreement.
