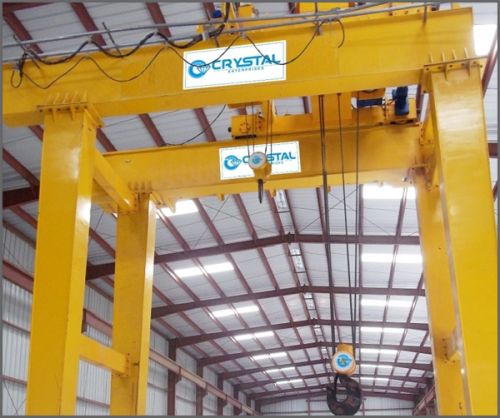

Gantry Semi Gantry Cranes

These types of cranes are installed in the Areas where entire shed structure cannot be built or installed or areas where shed structure is not required. These cranes run on the rails installed on grounds. These cranes also comes with Live Axle Execution Type Wheel Assembly which eliminates the external coupling between gearbox, Motor & Brake which eventually reduces the chances of maintenance & preventive maintenance frequency These cranes are used in Steel Yard, Stock yards, Constructions & Infrastructure sites, Marble Industries, Shed which are not made with considering the load conditions, Irregular shaped shed where length or width vary & is not suitable for SG EOT & DG EOT Cranes.

TECHNICAL SPECIFICATIONS :
Safe Working Load (SWL) : 1 ton to 100 tons • Operation : Indoor / Outdoor
Height of Lift: 2 m to as per customer requirements.
Class of Duty : M5-M7-M8, AS PER IS 807/3177
Wire Rope Construction/ No. FALLS: Con 6X36 IWRC (Steel Core) , 2-16 FALLS
Main Hoisting Speed (General) : 4 m/min Micro With VFD / Customized as required
Cross Travel Speed (General): 15 m/min (Micro with VFD / Customized as required
