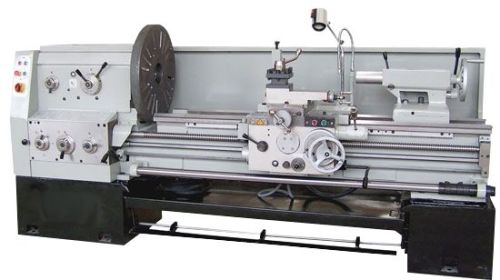

GAP-BED LATHE MACHINE

Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

INTRODUCTION Can perform internal and external turning, taper turning, end facing, and other rotary parts turning Threading Inch, Metric, Module and D.P.; Perform drilling, boring and groove....

View More Details

Send Enquiry

Company Information

Larosa Hardware & Equipment Co Ltd

sharjah

View Number

Member Since 13 Years
Nature of Business Supplier
Year of Establishment 2000

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

INTRODUCTION

Can perform internal and external turning, taper turning, end facing, and other rotary parts turning
Threading Inch, Metric, Module and D.P.;
Perform drilling, boring and groove broaching
Machine all kinds of flat stocks and those in irregular shapes;
Respectively with through-hole spindle bore, that can hold bar stocks in larger diameters;
Both Inch and Metric system are used on these series lathes, it's easy for people from different measuring Systems countries;
There are hand brake and foot brake for users to choose;
These series lathes operate on power supply of different voltages (220V、380V、420V) and different frequencies (50Hz、60Hz).

ITEM		UNIT	PARAMETER
			CS6240	CS6250/B	CS6266/B	CQ6280B	CS6250c	CS6266c	CQ6280C
TAILSTOCK	Quill dia./travel	mm	φ75/150			φ90/150	φ75/150		φ90/150
	Taper of Center	MT	5
Tool post	Number of station/ Tool section	4/25X25
Feed	Max X-axis travel	mm	145
	Max Z-axis travel	m/min	320					310	320
	X-axis feed	mm/r	93 sorts 0.028-6.43				65 0.063-2.52
	Metric thread	mm	48 sorts 0.5-224				65 sorts 0.027-1.07
	Inch thread	t.p.i	48 sorts 72-1/4				25 sorts 28-2
	Module thread	πmm	42 sorts 0.5-112				18 sorts 0.5-7
	DP thread	t.p.i.π	42 sorts 56-1/4				24 sorts 56-4
OTHER	Coolant pump motor	kW	0.06

ITEM		UNIT	PARAMETER
ITEM		UNIT	CS6240	CS6250/B	CS6266/B	CQ6280B	CS6250c	CS6266c	CQ6280C
CAPACITY	Max Swing over bed	mm	φ400	φ500	φ660	φ800	φ500	φ660	φ800
	Max Swing In Gap	mm	φ630	φ710	φ870	φ1000	φ710	φ870	φ1000
	Effective length in gap	mm	240
	Max swing over slide	mm	φ220	φ300	φ420	φ560	φ300	φ420	φ560
	Max work piece length	mm	750/1000/1500/2000/3000		1000/1500/2000/3000	2000/3000	1000/1500/2000/3000		2000/3000
SPINDLE	Spindle thru-hole	mm	φ52	φ82		φ82	φ105
	Spindle nose	mm	CS6140:ISO 702/Ⅲ No.6 bayonet type; Others: ISO 702/Ⅱ No.8 cam-lock type
	Spindle speed	r/min	24 step 9-1600			24 step 8-1400	12 step 36-1600		12 step 30-1400
	Spindle motor	kW	7.5
