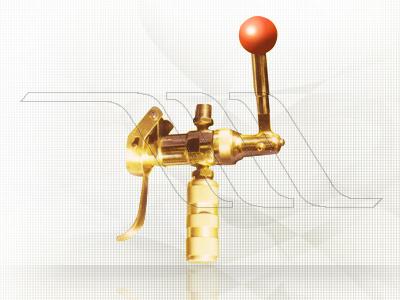

Charging gun is used in place of sockets. It comes in Four models MCG, HLG, HCG and CG. The main features are, very easy operation, less weariness from exertion. Under high pressure it becomes easy to connect / disconnect the socket from plug, by using line charging gun minimum force is required. Line charging gun is suitable to use for Gas charging, vacuum testing and leak testing etc.
| S.No | MODEL | PLUG SIZE | |||
| 1 | MCG - 318 | 1/8" | |||
| 2 | MCG - 635 | 1/4" | |||
| 3 | MCG - 952 | 1/8" | |||
| 4 | MCG - 1270 | 1/2" | |||
| 5 | MCG - 1905 | 3/4" | |||
| S.No | PARTICULARS | QTY | MOC | ||
| 1 | Socket Handle | 1 | SS-304 | ||
| 2 | Tie Pin | 1 | SS-304 | ||
| 3 | Socket Sleeve | 1 | SS-304 | ||
| 4 | Socket Spring | 1 | SS-304 | ||
| 5 | Socket Circlip | 1 | SS-304 | ||
| 6 | Socket | 1 | SS-304 | ||
| 7 | Socket 'O' Ring (OD) | 1 | FKM | ||
| 8 | Socket Plate | 1 | SS-304 | ||
| 9 | Piston Rod Nut | 1 | Gun Metal | ||
| 10 | Piston Seal | 1 | FKM | ||
| 11 | Piston Rod | 1 | SS-304 | ||
| 12 | Housing | 1 | Gun Metal | ||
| 13 | Housing Nipple | 2 | Gun Metal | ||
| 14 | Piston | 1 | Gun Metal | ||
| 15 | Piston 'O' Ring | 2 | FKM | ||
| 16 | Piston Spring | 1 | SS-304 | ||
| 17 | Housing Bolt 'O' Ring (ID) | 2 | FKM | ||
| 18 | Housing Bolt 'O' Ring (OD) | 1 | FKM | ||
| 19 | Housing Bolt | 1 | Gun Metal | ||
| 20 | Lever Holder | 1 | Gun Metal | ||
| 21 | Sleeve Nut | 1 | Gun Metal | ||
| 22 | Lever Pin | 1 | SS 304 | ||
| 23 | Bush | 2 | Gun Metal | ||
| 24 | Lever | 1 | Alloy Steel | ||
| 25 | Lever Knob | 1 | Carbonate | ||
| 26 | Housing Handle | 1 | Alloy AL | ||
| 27 | Jet Piece | 1 | Gun Metal | ||
| 28 | Socket 'O' Ring (ID) | 1 | FKM | ||
| 29 | Socket Ball | 6 | SS-304 | ||
| 30 | Guide Ring | 2 | PTFE | ||
| 31 | M4 Nylock Nut | 1 | SS-304 | ||
| 32 | M3 Nylock Nut | 1 | SS-304 | ||
| 33 | M3 Grub Screw | 1 | SS-304 | ||
| 34 | Handle Connector | 1 | Gun Metal | ||
| 35 | Sleeve Pin | 2 | SS-304 | ||
