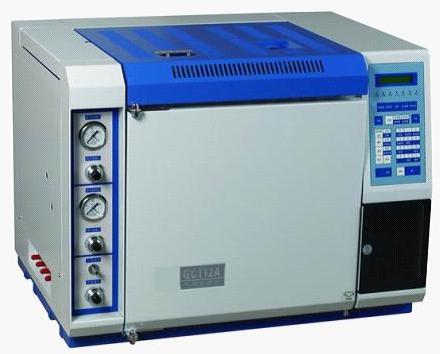

Gas Chromatography System, Brand Name : GOLD

We are offering gas chromatography system,
specifications：
temperature control
control range：7°c - 400°c above room temperature. (increment of 1°c)
control objects：column oven, detector, thermal conductive pond and sample injector
programmed temperature rising：5 ramps
rate of programmed temperature rising：0.1°c -40°c (increment of 0.1°c)
thermostatic time：0-655 min (increment of 1 min)
fid
sensitivity (minimum testability)：m≤5´10-11 gs (sample: c16)
optimum testing result：m≤1´10-11 gs
noise：≤5´10-14 a
drift：≤6´10-13 ah
linear range：≥106
tcd
sensitivity：≥2000mv.mlmg
noise：≤20mv
drift：≤30mv
linear range：≥104
overall dimension & weight
shipping package dimension: 850-680-750mm
net weight: 50kg
gross weight: 66kg
optional accessories:
tcd
software with io port.
