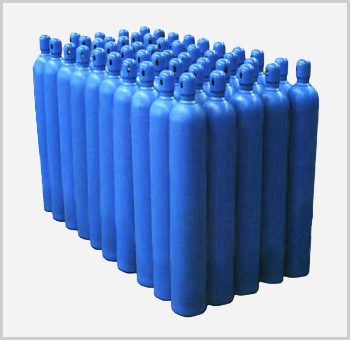

Gas Cylinder

Detailed Product Description
1.water Capacity:20l-80l
2.wp:15mpa/20mpa
3.outer Dia.:219/232/267/279mm
4.material:37mn/34crmo4
5.standard:iso9809/gb5099
serial No. Type Nominal Working Pressure(mpa) Water Test Pressurempa Volume(l) Nominal Outer Dia(mm) Design Wall Thickness(mm) Length(mm) Weight(kg) Material for Cylinder Carry Out Standard
1 Wma140-4-15 15 22.5 4 140 3.6 395 6.7 37mn Gb5099
2 Wma140-5-15 15 22.5 5 140 455 7.5 37mn
3 Wma140-6.7-15 15 22.5 6.7 140 585 9.7 37mn
4 Wma140-8-15 15 22.5 8 140 680 11 37mn
5 Wma159-8-15 15 22.5 8 159 4.5 545 10.5 37mn Gb5099
6 Wma159-10-15 15 22.5 10 159 675 13 37mn
7 Wma159-15-15 15 22.5 15 159 955 18 37mn
8 Wma219-20-15 15 22.5 20 219 5.7 720 30 37mn Gb5099
9 Wma219-32-15 15 22.5 32 219 1080 42.5 37mn
10 Wma219-36-15 15 22.5 36 219 1200 47 37mn
11 Wma219-38-15 15 22.5 38 219 1250 49 37mn
12 Wma219-40-15 15 22.5 40 219 1310 51 37mn
13 Wma219-45-15 15 22.5 45 219 1460 56.5 37mn
14 Wza267-68-15 15 22.5 68 267 6 1500 74 37mn Gb5099
15 Wza267-70-15 15 22.5 70 267 1540 76 37mn
16 Wza267-80-15 15 22.5 80 267 1740 84 37mn
17 Wza267-82-15 15 22.5 82 267 1780 86 37mn
18 Wza279-60-15 15 22.5 60 279 6 1270 71 37mn Gb5099
19 Wza279-70-15 15 22.5 70 279 1460 80 37mn
20 Wza279-80-15 15 22.5 80 279 1640 90 37mn
21 Wma232-40-15 15 25 40 232 4.5/5.5 1230 49 34crmo4 Iso9809
22 Wma232-47-15 15 25 47 232 1400 56 34crmo4
23 Wma232-50-15 15 25 50 232 1500 59 34crmo4
