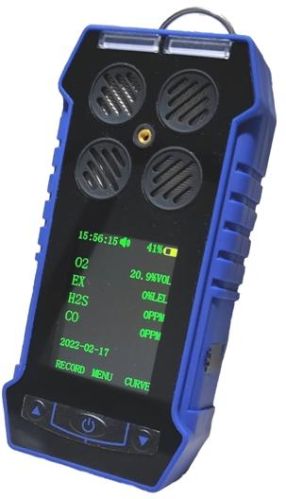

ABS Plastic Gas Detector, Color : Black, Blue for Industrial Use

portable gas detector

introdduction:

portable and multi-gas detector simultaneously monitors and displays up to

five gases. the compact and field tough ats-103m features a non-intrusive

integrated sampling pump designed for performance, reliability and ease-ofuse.

it's optional data logging and computer interface features can be used for

further detailed analysis.

special feature:

automatic operation

self diagnostic check

proven sensor technology

continuous, stable alphanumeric

display

customized visual & sound alarms

suitable for use in hazardous area

class-1, div.-1, groups a, b, c & d

zone ‘0’ of gas group iic

diffusion or suction sampling

long life rechargeable batteries

data logging and rs 232 output capability

operation modes: real time always ready

light weight, handy and simple to use

sampling probe

csir-cimfr approved

specification:

gases detected : ch4/lel, o2, h2s, co

measuring range :

ch4: (0.00~5.00)%vol (optional)

lel: (0~100)%lel

o2 : (0~30.0)%vol

h2s: (0~100)ppm

co: (0~1000) ppm

resolution ratio : ch4: 0.01, lel: 1%lel, o2: 0.1%vol,h2s:1ppm, co: 1ppm

sensor : high quality catalytic sensor for lel

electrochemical sensor for h2s, co & o2

sensor lifetime : ≥ 2years

response time : ch4: ≤20s ( t90 ), lel: ≤20s ( t90 ), o2: ≤35s(t90),

h2s: ≤45s ( t90 ), co: ≤45s (t90)

alarms : audible--buzzer with ≥85db @1m audible

visible--flashing red led, ≥20m visible

vibration

alarm point : high and low, fully adjustable

temperature : -25 deg. c to +55 deg. c

continuous working time : ≥13hours

display : liquid crystal display(lcd)

battery : 3.7v/1500ma

charging time : 4-5 hours

dust and water resistance : ip67

size & weight : 136*70*37mm,250g

on start up, the instrument automatically goes through complete self integrity check,

on demand. the press of sampling switch initiates the sampling through suction

analysis and digitally displays the results. “hold key” enables monitor/analysis for

a particularparameter of interest.
