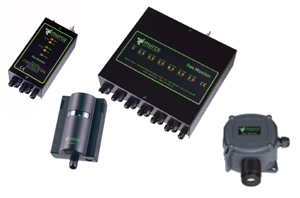

Gas Detector With Alarm Control Panel

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

The Gas Detector (MGD) is a reliable fixed gas detector which can detect a wide range of different gases. The MGD is a stand-alone set-point alarm system. Application : Refrigerant gases all....

View More Details

Send Enquiry

Company Information

Kahan Controls

Kandivali, Mumbai, Maharashtra

View Number

Member Since 9 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

The Gas Detector (MGD) is a reliable fixed gas detector which can detect a wide range of different gases. The MGD is a stand-alone set-point alarm system.

Application :
	Refrigerant gases all refrigerant gases including: Ammonia, Carbon Dioxide, Hydrocarbons, Halocarbons - HFCs, HCFCs, CFCs.
	Combustible gases such as: Methane, LPG, Propane, Butane, and Hydrogen
	Toxic gases such as: Carbon Dioxide and Ammonia in refrigeration and Carbon Monoxide in underground car parks
	Volatile Organic Compounds such as: Acetone, Benzene, Carbon Tetrachloride, Chloroform, Ethanol, Toluene, Trichloroethylene

Features :

Technical Specification	Controller with 1 or 2 sensors		Controller with 4 or 6 sensors

Alarm Levels	One Level	Two Level	One Level	Two Level

Power Supply	Available in 230V a.c 50Hz/120V a.c 60Hz / 12V d.c

Power Monitoring	Green LED	Green LED	Green LED	Green LED

Visual Alarm	Red LED	Orange LED (low) Red LED (high)	Red LED	Orange LED (low) Red LED (high)

Fault Monitoring	Red LED, Volt free relay/ Siren inactive	Red LED, Volt free relay/ Siren inactive	Red LED, Volt free relay/ Siren inactive	Red LED, Volt free relay/ Siren inactive

Audible Alarms	Internal Sounder - continuous	Int. Sound. - intermit. (low)/cont. (high)	External Sounder - continuous	EXT. Sound. - intermit. (low)/cont.

Siren Deactivate	by onboard jumper	by key switch	by onboard jumper	by key switch

Volt Free Relay on Alarm	10 Amp@ 230/120V	10 Amp@ 230/120V	10 Amp@ 230/120V	10 Amp@ 230/120V (both low & high level)

Relay Expander Box	N/A	N/A	N/A	Available

Reset	Automatic when gas clears	Automatic when gas clears (low)	Automatic when gas clears	Automatic when gas clears (low)

Delayed Response	3 min.	25 sec. (low) / 30 sec. (high)	3 min.	25 sec. (low) / 30 sec. (high)

Delayed Start	On power up, 3 min to allow 2 level system to normalise		On power up, 3 min to allow 2 level system to normalise

Ratings	Controller: IP 51	Standard Sensor: IP41	Controller: IP 51	Standard Sensor: Ip41

Dimensions & Weight	Controller: Standard Sensor:	214 x 105 x 80 mm 1.3kg 86 x 120 x 53 mm 150g	Controller: Standard Sensor:	262 x 265 x 84 mm 2.6kg 86 x 120 x 53 mm 150g
