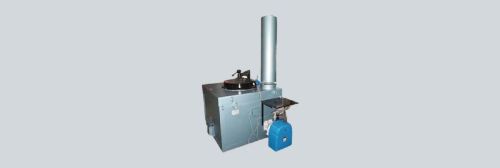

GAS FIRED BALE OUT FURNACE

• IMPROVES THE THERMAL EFFICIENCY OF THE MELTING PROCESS
• ALUMINIUM CAPACITIES UP TO 1327 KG

Data for zinc and zinc alloys available one request.
Above data based on optimum foundry conditions. For normal foundry operations a performance of 90% of these ratings is typical.

KEY FEATURES :-
GAS BURNER
The furnace is equipped with an advanced self-contained nozzle mix gas burner. The burner provides maximum melt rates with efficient fuel inputs. This maximises crucible life and performance. The controller and fast response rate of the furnace nearly eliminate temperature overshoot. This reliable, fully-modulating industrial grade burner utilises anultra-violet detector to monitor the presence of combustion. Accurate ratio control minimises emissions of NOx and CO.

• Circuit breaker for isolation and protection
• Proportional control gas burner
• Crucible and heater hour meters
• Programmable time clock switching
• Mimic display
• Flame failure, sequencing controller

Metal temperature control may be either from a floating or fixed pyrometer or one housed within the crucible. The programmable controller will maintain the metal temperature within very close limits, by automatic adjustment to heat input, whether melting or holding.
The digital display shows both the required temperature and current metal temperature.
TEMPERATURE DEPRESSION
This energy conservation feature enables a lower holding temperature to be automatically selected during periods of non use. A dedicated real-time/date clock can be programmed to select reduced temperature and to return to operational temperature. when required. Similarly, the real-time clock can be programmed to start up and shut down the furnace at preset times and dates.
