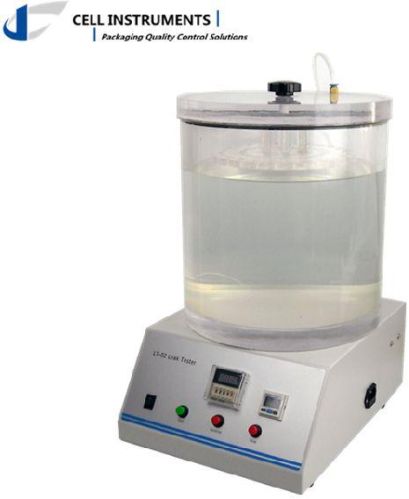

Gas Leak Detector

We are offering gas leak detector. Brief introduction: gas leak detector is designed for the examination of air proof property of packages, containers, bags, pipes.gas leak detector is widely used in food, beverage, pharmaceutical, daily chemical, electrical and electronic industries, etc. Gas leak detector lt-02 complies with astm d3078 and gbt 15171 standards.
the gas leak tester system is composed of the mainframe and the vacuum chamber. a test sample is placed into a vacuum chamber with water and the air above water level is evacuated by a venturi vacuum ejector. A great pressure difference is created inside and outside the sample and any slight leakage can be observed and identified when the sample is inflated.
gas leak detector features
leak tester uses vacuum ejector to generate stable vacuum environment.
1. leak test process all automatic
2. digital vacuum degree and test time setting
3. automatic vacuum maintenance and air back-flushing
4. extra-thick perspex
5. different chamber sizes available
6. no vacuum pump required
7. easy operation and maintenance leak detection system
gas leak detector technical specification
vacuum: 0~-90kpa0~-13psi
vacuum chamber size: φ270 mm x 210 mm (h) ( customization available)
gas source: compressed air
gas pressure: 0.7mpa101.5psi
standards
astm d3078 , gbt 15171
