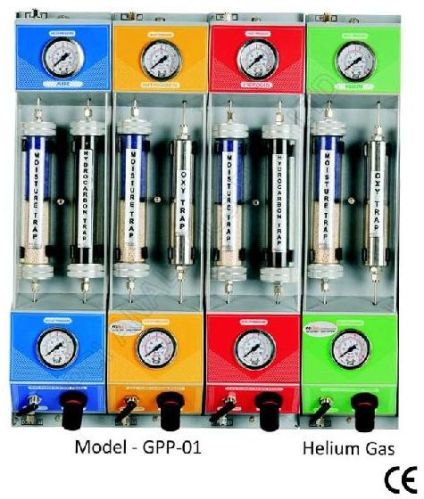

Gas Purification

Get Latest Price

Pressure Guages0 - 10 kg / cm² Pannel mounting
Pannel BodyPowder coated wall mounted design with optional safety frame & fully S.S. body
TubingsS.S. / Copper / Nylon with colour coaded sleeves
Net weight14 kg. (Model GPP-01)
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

PCI Analytics Pvt. Ltd

Bhandup West, Mumbai, Maharashtra

View Number

Member Since 7 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Pressure RegulatorsMaximum inlet pressure 10 kg / cm²
Pressure Guages0 - 10 kg / cm² Pannel mounting
Pannel BodyPowder coated wall mounted design with optional safety frame & fully S.S. body
Toggle valveOn / off type
TubingsS.S. / Copper / Nylon with colour coaded sleeves
Net weight14 kg. (Model GPP-01)
Size of Pannel420W x 600H x 87D in mm (Model GPP-01)

Salient Features & Benefits:

• Deliver Ultra High Pure (UHP) Grade Gases
• Compact Design, Wall Mounted, Powder Coated
• Filters are easily detachable
• Suitable for 10kg/cm² inlet pressure & 7 kg/cm² outlet pressure
• Panel for LC-MS-MS & other applications are also available
• Reduce baseline noise, drift problems, etc.
• Increase column life, GC detectors & reduces flame problems
• Improve reproducibility
• Save costly gases through toggle valves & gas distribution panel.

APPLICATION	FILTER TYPE	MAX. INLET IMPURITY LEVEL	MAX. OUTLET IMPURITY LEVEL	LENGTH End to End	CAPACITY
Moisture Removal	Silicagel / Molecular Sieve	20 ppm	< 3 ppm	10"	210 CC
Hydro Carbon Removal	Activated Charcoal / Carbon	10 ppm	< 2 ppm	10"	210 CC
Oxygen Removal	De-Oxo Chemical catalyst	10 ppm	< 2 ppm	8"	125 CC
Particle Removal	Micron Filter	25 μ	< 0.5 μ	2"	—
