Gas Transmission Rate Tester

₹ 4.53 Lakh - ₹ 45.25 Lakh / set

MOQ1 Set(s)
Applicationgas transmission rate tester
Temperature15°C~55°C(temperature control device optional)
Test modesProportional mode and standard mode
Measure methoddifferential pressure method
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

Member Since 14 Years
Nature of Business Manufacturer
Year of Establishment 1989

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Applicationgas transmission rate tester
Net Weight57kg
Instrument dimension1370mm*575mm*450mm
Measure methoddifferential pressure method
Temperature15°C~55°C(temperature control device optional)
Test modesProportional mode and standard mode
Test Area28.27 cm2

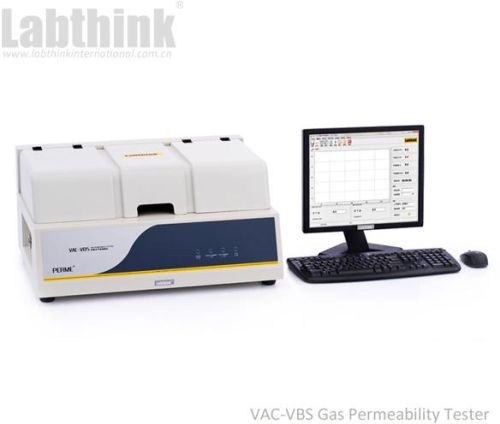

Gas transmission rate tester vac- vbs is based on the differential pressure method, and is professionally applicable to the determination of gas transmission rate of films, sheeting, high barrier materials and aluminum foils.
features:
the gtrs of various films for distinct gases are testable
tests 3 equivalent specimens at one operation and exports test results in average value
equipped with temperature control device (optional parts) to meet various test conditions
the instrument comes with two test modes: proportional mode and standard mode
the system is controlled by computer and test process is automatic
reference film for fast calibration to ensure accurate and universal test data
specifications:
test range 0.1~100,000 cm3m2·24h·0.1mpa (standard)
number of specimens 3
vacuum resolution 0.1 pa
vacuum degree of test chamber
