Gas Tube Arresters

We are offering gas tube arresters.
1. product features
 gas-tube structure
 easily replaced gas tube element
 reliable performance from dc to 2.5ghz
 multi-strike capability
 bi-directional protection
 dc passed
 rohs compliant
2. applications
 ieee 802.11b and 802.11g wireless lan
 ism
 mmds
 cellular
 pcs
 gps
3. technical data

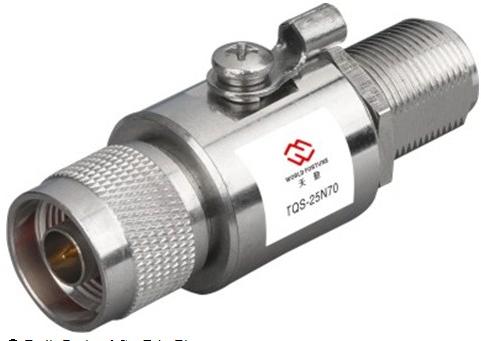

model tqs-25n70 tqs-25f70
operating frequency 0-2.5ghz
nominal operating voltage uc 70v
maximum discharge current imax (820μs) 20ka
protection level up (820μs,10ka） ≤200v
response time ta ≤1ns
standing-wave ratio ≤1.2
insertion loss ≤0.2db
impedance(ω) 50
connector type n, din(716), f, tnc, sma, etc.
Index of protection ip20 (ip67 with buckle head)
weight per unit 120g
warranty five-year warranty, three-year replacement
related items tqs-25t70, tqs-25b70, tqs-25d70, tqs-25s70; 14 wave length type: tqs-25d14, tqs-25n14, tqs-58d14
