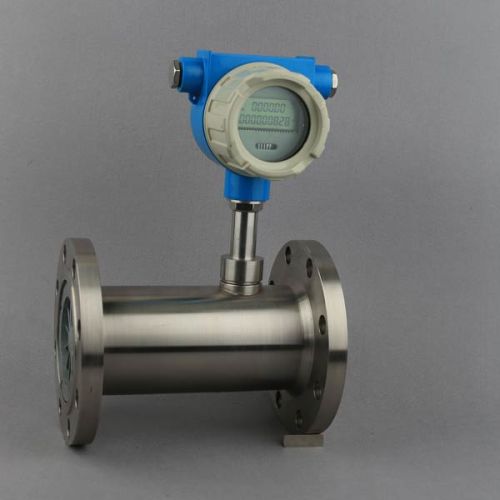

Gas Turbine Flow Meter, Brand Name : NONCON

We are offering gas turbine flow meter. Item specification:
measuring medium:gas, natural gas, nitrogen, compressed gas
material:304 stainless steel, aluminum alloy
medium temperature:-30 to +80â°c
environment condition:temperature-20 to +60â°c relative humidity: 5% to 90% atmospheric pressure: 86kpa to 106kpa
accuracy:â±1.5 ; â±1.0
ratio of measurement range:1: 10; 1:20; 1: 30
output signal:sensor: frequency impulse signal, low level� 0.8v, high level� 8v transmitter: two-wire system, 4~20madc
power supply:sensor: +12vdc, +24vdc ( optional) transmitter: +24vdc local display: +24vdc or 3.6v lithium battery ( field data show the battery can be continuous used for about 3 to 4 years)
signal transmission cable:stvpv3*0.3( three-wire system), 2*0.3(two-wire system)
transmission distance: 1000m
explosion-proof type:exd ii bt6
protection level:ip65
