Contact SupplierFeatures:
Strict leakage testing, working more efficiency;
Strong structure design, more liability and durability;
More powerful, perfect performance.

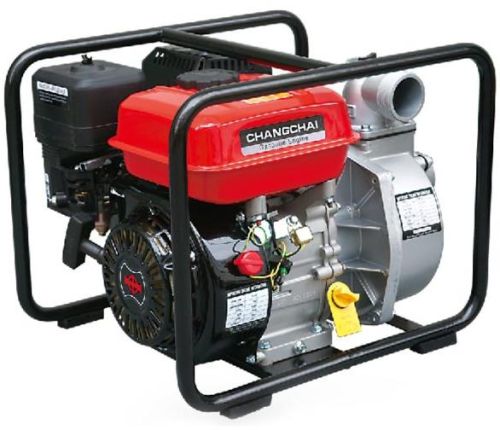

Model CCWPG20
Inlet and outlet inside diameter(mm/in) 50
Pump lift(m) 30
Suction height(m) 6
Output height[(L/min)] 582
Engine Model CQ168F
Type 4-stroke, OHV25° inclined, single-cylinder with air-cooled
BoreXStroke(mm) 68X54
Displacement(ml) 196
Compression ratio 8.5:1
Rated output(kW/rpm) 4.1/3600
Ignition system No-contact transistorized ignition (T.C.I)
Start mode Recoil starting or Electric starting
Air cleaner Semi-dry, dual element
Fuel tank capacity(L) 3.6
Fuel consumption(g/Kw-hour)
