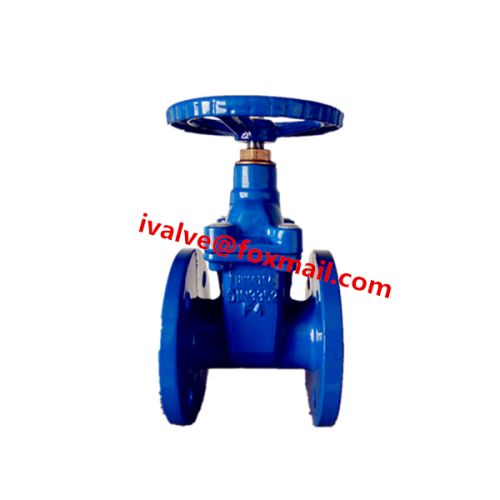

Ductile Iron gate valve, Brand Name : GateValves

Gate Valve
Our range:butterfly valve,gate valve,check valve,globe valve,ball valve,y strainer,rubber joint
resilient seated gate valve
specifications
1. Suitable media: water.
2. Flange: din2501en1092-2 pn101625.
3. Nominal diameter: dn40~dn600 (1 12"~24").
4. Tightness check: api 598iso 5208en12226-1.
5. Working pressure: pn10pn16pn25 or 10bar16bar25bar.
6. Operator: cap top, hand wheel, gear box, electric actuator, etc.
7. Working temperature: -20 to 120 centigrade. (epdm: -20 to 120, nbr: -10 to 80).
8. Face-to-face conform to din3352din3202 f4f5(iso5752 series1415)en558-1 series1415.
Main parts materials
a) seat: epdmnbrbrass.
B) gland follower: brassductile iron.
C) bolt and nut: stainless steel, steel with zinc.
D) stem: stainless steel, brass, bronze, steel with zinc.
E) hand-wheel: ductile iron malleable ironcarbon steel.
F) bodybonnetdisc: cast ironductile ironcidigg25ggg40ggg50ht200qt450.
Delivery & packaging
delivery detail: general within 30 days or according to the order quantity.
Packaging detail: plywood case. (each pc into one bubble plastic bag, several pcs into one plywood case).
