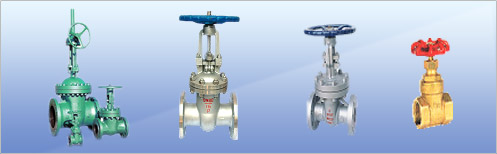

Gate Valve

Design Standard :   API 600/BS-1414
Face To Face Dimensions :   ANSI B 16.10/BS-2080
Size Range :   15mm to 600 mm.
Pressure Rating :   150/300/600/900/1500/2500 class.

Material Of Construction :

• From bar stock in carbon steel or stainless steel (304, 316,304L. 316L. 321) Hastalloy B & C & Alloy 20.
• Castings in carbon steel to ASTM A216Gr. WCB, WCC, LCB, LCC.
• Casting in stainless steel to ASTM A 351 Gr. CF8/CF 8M/CF 8C/CF3/CF 3M Alloy 20,Hastalloy B & C.
• Castings in C.I. to I.S. 210 G.R.20 ,Castings in Alloy Steel to ASTM A 217 C5, WC6, WC9, WC12.

Ends :

• Screwed to BSP/BSPT/NPT for sizes 15 mm to 50 mm.
• Flanged to ANSI, DIN or BS, API-6D standard.
• Socket weld to ANSI B16.11. for sizes 15 mm to 50 mm.
• Butt weld to ANSI B 16.25 for sizes 15 mm to 600 mm.
