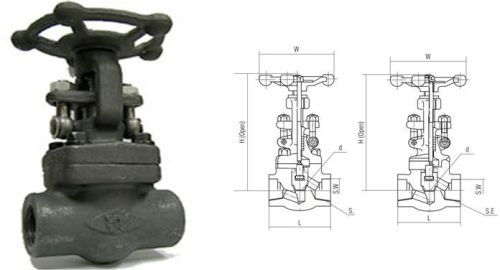

Gate Valves, Size : 1.1/2inch

Supply TypeManufacturer, Exporter, Supplier, Retailer, Distributor, Trader
Preferred Buyer Location All over the world

Features Reduced Or Full Port Compact Outside Screw & Yoke Spiral Wound Gasket Of Stainless Steel Bolted Bonnet or Welded Bonnet Socket Weld Or Threaded Ends Replaceable Hardfaced Seats Applicable Stabdards Basic Design, BS 5352 & Ansi B16.34 Socket-Weld (S.W) Ansi B16.11 Threaded End (S.E) Ansi B1.20.1 Valve Test And Inspect :API 598 Standard Material: A105N, LF2, F5, F11, F22, F304, F304L, F316,

View More Details

Send Enquiry

Company Information

Balaji Group of Industries

Kotharia, Rajkot, Gujarat

View Number

Member Since 12 Years
Nature of Business Retailer
Year of Establishment 2006

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Nominal Size	Reduced Port	mm(in)	8(1/4)	10(3/8)	15(1/2)	20(3/4)	25(1)	32(1 1/4)	40(1 1/2)	50(2)	65(2 1/2)	80 (3)
	Full Port	mm(in)	-	-	10(3/8)	15(1/2)	20(3/4)	25(1)	32(1 1/4)	40(1 1/2)	50(2)	-
D (Bore Size)		mm	7	7	10	13.6	18	24	29	36.8	46.5	51
L		mm	79	79	79	92	111	120	120	140	178	185
H (Open)		mm	166	166	166	169	193	230	246	283	330	359
w		mm	100	100	100	100	125	160	160	180	200	200
Weight	B.B	kg	2.3	2.2	2.1	2.3	4.0	5.9	6.9	11.2	15.8	20
Weight	W.B	kg	1.9	1.8	1.7	2.1	3.7	5.2	6.2	10.4	14.8	-
