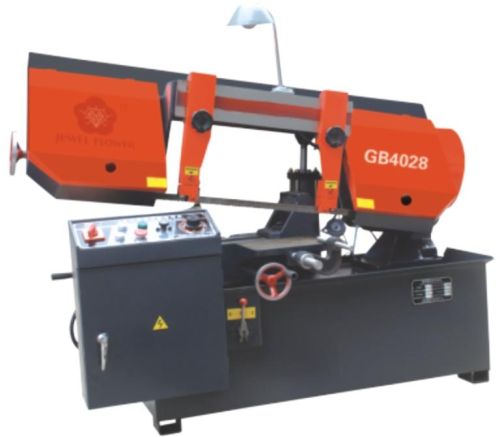

Gb4028 Horizontal Metal Band Saw Machine, Brand Name : JEWELFLOWER

specification:
1) Cutting scope:
Round bar diameter: 280mm
Quadrate bar (width x thickness): 280 x 350mm
2) Blade size: 3505 x 27 x 0.9mm; blade speed: adjustable from 20 to 80
3) Process speed: 20 / 40 / 60 (m/min)
4) Motor power details:
Main motor: 3kW
Cooling pump motor: 0.04kW
Oil pump motor: 0.75kW
Feed motor: 3kW
5) Work table-board height: 643mm
6) Over dimensions: 1,995 x 1,095 x 1,445mm
7) Net weight: 1,100kg
8) Wood packing dimensions: 2,000 x 1,100 x 1,450mm
Features:
1.hydraulic control of feeding speed of sawing /cutting.stepless adjustable.
2.hyfraulic control of bilateral claping of pincers,automatic aliging with the workpiece center for sawing/cutting
3.possible for cutting small material in bundle with high production efficiency.
4.the saw blade uses antifriction bearing and hard alloy for guiding,thus prolonging service life of the saw blade.
band saw machine for cutting various of materials as metal, aluminum,nylon,plastic,etc.simple and convenient operation and maintenance.
One year warranty ,long life service.
We offer horizontal band saw,vertical band saw machine,square double-housing metal band saw ,round double-column metal band saw machine,NC-machine,small-sized verital saw,large-travel vertical saw,etc.
We also accept customer customizetion
