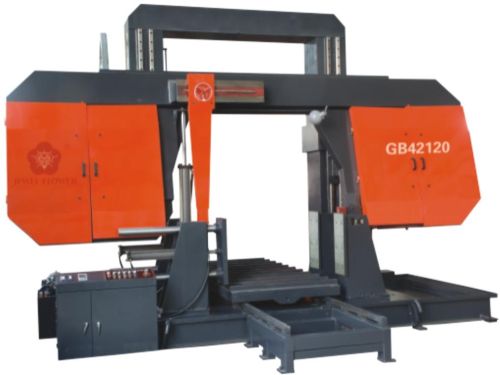

Gb42120 Gantry Type Metal Cutting Machine, Brand Name : JEWELFLOWER

MOQ1 Set(s)
Brand NameJEWELFLOWER
Usage/Applicationmetal cutting mainly
TypeHorizontal
structureportal structure with high rigidity
Supply TypeManufacturer
Preferred Buyer Location All over the world

Product Details

Brand NameJEWELFLOWER
Usage/Applicationmetal cutting mainly
ConditionNew
structureportal structure with high rigidity
TypeHorizontal
feed modelplate pulley automatic feed

Features:
1) Cutting scope:
a) Round bar diameter: 1200mm
b) Quadrate bar (width x thickness): 1200 x 1200mm
2) Blade size:11685 x 67x 1.6mm
3) Process speed: 20 / 40 / 60m/min; blade speed: adjustable from 20 to 80
4) Motor power details:
a) Main motor: 15kW
b) Cooling pump motor: 0.125kW
c) Oil pump motor: 3kW
d) Feed motor: 7.5kW
5) Work table-board height: 576mm
6) Over dimensions: 3,195 x 1,745 x 2,595mm
7) Net weight: 3,500kg
We offer horizontal band saw,vertical band saw machine,square double-housing metal band saw ,round double-column metal band saw machine,NC-machine,small-sized verital saw,large-travel vertical saw,etc.
We also accept customer customizetion
