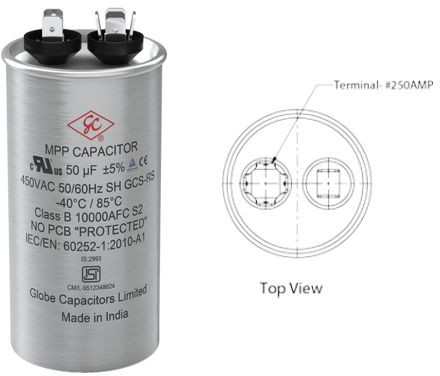

GCS-RS Single Round MPP Capacitor

Company Information

NIT, Faridabad, Haryana

Ask for more detail from the seller

Report incorrect details

Country of Origin210 VAC to 500 VAC
Class of OperationClass “A” 30,000hours (IEC 60252-1:2010) +A1 AND 60000hrs (EIA-456A)
Withstand Voltage Between T-C2000 VAC /60Sec.
Operating Temperature Range-40 Degree C to +85 Degree C(40/85/21standard),90°C available
Capacitance Tolerance±5% Standard, other Tolerance Available
Withstand Voltage Between T-T2 x Rated Voltage /60sec.
Capacitance Range1.0µF to 100µF
Rated Frequency50/60Hz
Dissipation Factor≤0.2% At Room Temperature (50/60hz)
Safety ClassP2/S2

GCS-RS series are soft polyurethane filled, aluminium cased, round capacitors with a single element.

Dielectric	Electronic Grade High Temperature Metallised Polypropylene Film
Element	Mpp (Metallised Pp) Film Wound On High-Speed Cnc Winding Machines
Filling	Soft Polyurethane Non-Polluting Vegetable Base
Case	High Purity Round/Oval Aluminium Cans
Terminals	Tin-Plated Steel, (maximum 4pins/Blade For Each Terminal) Quick-Connect (fast-on) Terminals, 250amp Are Standard Here.
Metal Top Assembly	The Top Cover Is Aluminium Provided With Holes For Terminals That Are Insulated By Pbt Ul V-0 Cups
Pressure Sensitive Interrupter	Made Of Pbt Ul V-0 Self-Extinguishing Plastic
Sealing	Folding Of Al Can And Metal Top By Seaming.
